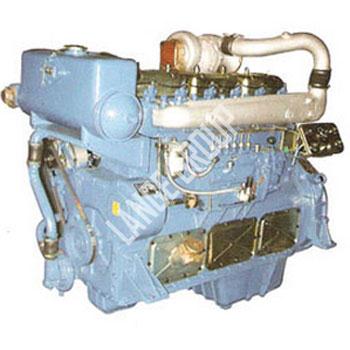

| Product Name | GuiZhou 135 High Speed Marine Diesel Engine | ||||||
| Brand | GuiZhou XinHuiTianLi Diesel Engine | ||||||
| Series | 135 | ||||||
| Introduction | Water cooled,Inline,4–stroke,Turbocharged and intercooled,Natural aspiration,Turbocharged | ||||||
| Product No. | Engine Model | Cylinder Number | Bore⁄Stroke | Rated Power | 12 hours Power | Rated Rotation | Min.Fuel consumption |
| mm | Kw | Kw | r⁄min | g⁄Kw.h | |||
| MPPS103–GU001 | GC4135Cz | 4 | 135⁄150 | 50.3 | 61.7 | 1500 | 227 |
| MPPS103–GU002 | GC4135ACz | 4 | 135⁄150 | 62.9 | 77.2 | 1500 | |
| MPPS103–GU003 | GC6135Cz | 6 | 135⁄150 | 75.4 | 92.7 | 1500 | 223 |
| MPPS103–GU004 | GC6135ACz | 6 | 135⁄150 | 94.6 | 115.8 | 1500 | |
| MPPS103–GU005 | (A)4135Ca⁄Caf | 4 | 135⁄150 | 50.3 | 58.8 | 1500 | 229 |
| MPPS103–GU006 | 4135ACa⁄ACaf | 4 | 135⁄150 | 62.9 | 73.5 | 1500 | |
| MPPS103–GU007 | (A)6135Ca⁄Caf | 6 | 135⁄150 | 75.4 | 88.2 | 1500 | 225 |
| MPPS103–GU008 | 6135ACa⁄Acaf | 6 | 135⁄150 | 94.6 | 110.3 | 1500 | |
| MPPS103–GU009 | 6135ACa–1 | 6 | 135⁄150 | 109.2 | 133.5 | 1800 | |
| MPPS103–GU010 | (A)6135ZCa⁄Zcaf | 6 | 135⁄150 | 112 | 137.5 | 1500 | 219 |
| MPPS103–GU011 | 6135AZCa⁄AZCaf | 6 | 135⁄150 | 132.4 | 161.8 | 1500 | |
| MPPS103–GU012 | 6135AZCa–1 | 6 | 135⁄150 | 145.6 | 177.9 | 1800 | |
| MPPS103–GU013 | 6135AZLCa⁄AZLCaf | 6 | 135⁄150 | ⁄ | 176.5 | 1500 | 217 |
