Product Name Marine Plate Heat Exchanger Unit

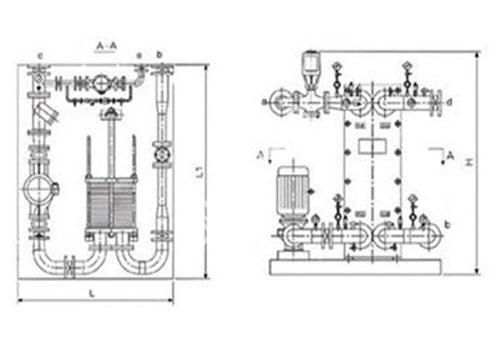

Marine plate type heat exchanger unit
No. Capacity Surface Meduim water Vadose water Supplement Main demension(mm) Weight
MW m2 L L1 H Kg
MHEE602-PU001 0.24 31.2 50 50 20 1150 1300 1132 520
MHEE602-PU002 0.48 62.4 65 65 20 1120 1600 1132 618
MHEE602-PU003 0.8 104 65 80 20 1400 1700 1314 930
MHEE602-PU004 1.6 208 80 100 25 1600 2000 1714 1520
MHEE602-PU005 2.4 312 100 125 25 1600 2000 1714 1690
MHEE602-PU006 3.2 416 100 150 40 1800 2500 2023 2410
MHEE602-PU007 4 520 100 150 40 1800 2500 2023 2630
MHEE602-PU008 4.8 624 100 150 50 1800 2500 2023 2760
MHEE602-PU009 6.4 832 150 200 50 2200 3100 2402 4100
MHEE602-PU010 8 1040 150 200 50 2200 3100 2402 4390
MHEE602-PU011 9.6 1248 150 200 65 2200 3100 2402 4670
MHEE602-PU012 12 1560 200 250 65 2300 3500 2778 6790
MHEE602-PU013 16 2080 200 250 65 2600 3700 2778 7480
MHEE602-PU014 24 3120 250 300 65 3000 4800 2778 10200
