Lifeboats >> Auxiliary Equipment >> Launching Appliance >> Single Arm Rescue Boat & Life Boat & Raft & Crane Launching Appliance
¡¡  | ||||||||||||

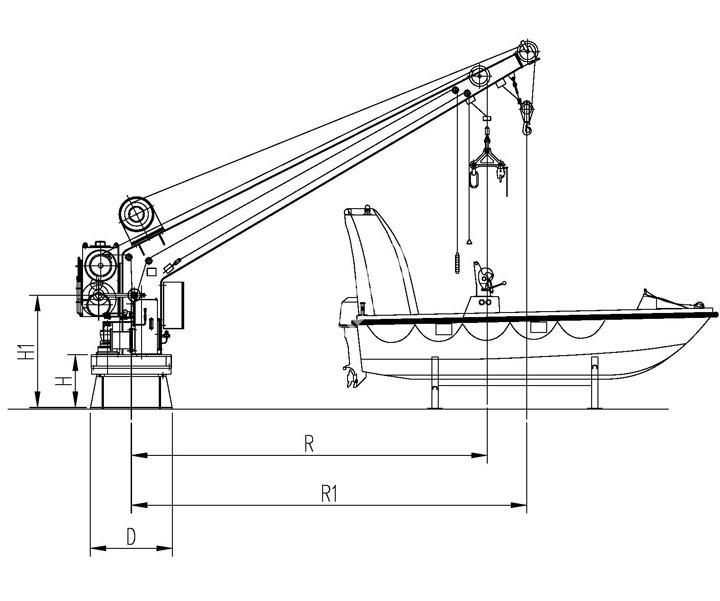

| Single Arm Rescue Boat & Life Boat & Raft & Crane Launching Appliance | ||||||||||||
| Product No. | S.W.L (kN) | Hoisting Load (kN) | Slewing Load (kN) | Slewing Radius (m) | Capacity of Drum (m) | Crane Hoisting Load (kN) | Totally Weight £¨kg£© | Crane Slewing Radius (R1) (m) | Crane Capacity of Drum (m) | Base Radius (D) (mm) | Base Height (H) (mm) | Handle Height (H1) (mm) |
| MLSE708-YDC21 | 21 | 14 | 14 | 3.5-5.4 | 35 | 15 | 2800 | 7.3 | 30 | ¦µ1000 | 350/560/700 | 1400/1660/1800 |
| MLSE708-SAC21 | 21 | 14 | 14 | 3.5-5.4 | 35 | 15 | Max 7.3 | 30 | ¦µ1040 | 350/560/700 | 1400/1610/1800 | |
| 5.5-7.5 | Max 8.0 | ¦µ1240 | ||||||||||
