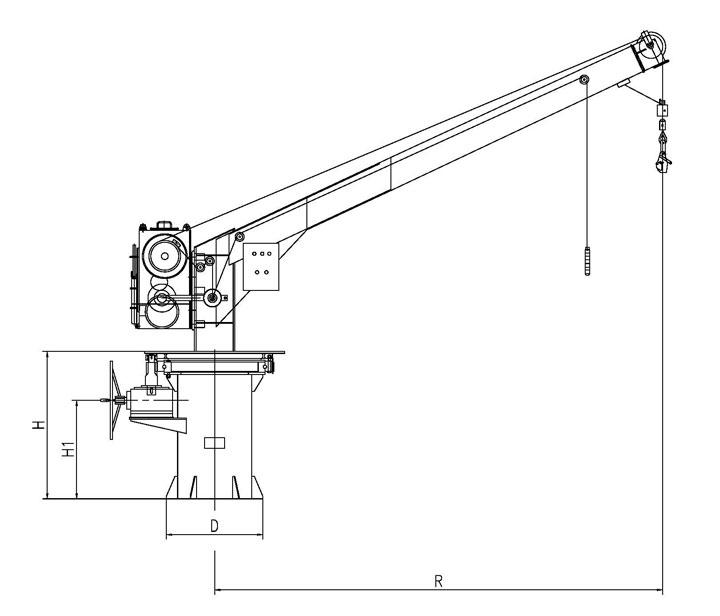

| Single Arm Manual Slewing Raft Davit | |||||||||
| Product No. | S.W.L (kN) | Hoisting Load (kN) | Slewing Load (kN) | Slewing Radius (m) | Capacity of Drum (m) | Totally Weight £¨kg£© | Base Radius (D) (mm) | Base Height (H) (mm) | Handle Height (H1) (mm) |
| MLSE707-LG21 | 21 | 6 | 6 | 3.5-4.0 | 35 | 2500 | ¦µ800 | 1000 | 880 |
| MLSE707-LG21A | 21 | 11 | 11 | 3.5-5.2 | 35 | ¦µ860 | 1300 | ||
| MLSE707-LG21SMRF | 21 | 3 | 3 | 3.5-5.2 | 35 | ¦µ860 | 1300 | ||
