Lifeboats >> Auxiliary Equipment >> Launching Appliance >> Single Arm Rescue Boat/Raft Launching Appliance
¡¡  | |||||||||

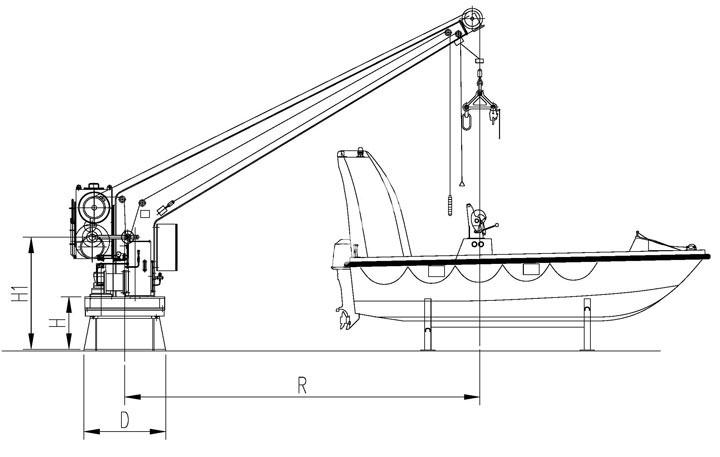

| Single Arm Rescue Boat/Raft Launching Appliance | |||||||||
| Product No. | S.W.L (kN) | Hoisting Load (kN) | Slewing Load (kN) | Slewing Radius (m) | Capacity of Drum (m) | Totally Weight £¨kg£© | Base Radius (D) (mm) | Base Height (H) (mm) | Handle Height (H1) (mm) |
| MLSE706-LG21 | 21 | 14 | 14 | 3.5-5.4 | 35 | 2800 | ¦µ1000 | 350/560/700 | 1400/1610/1750 |
| MLSE706-LG21A | 21 | 14 | 14 | 3.5-7.5 | 35 | ¦µ1240 | 350/560/700 | ||
| MLSE706-LG21B | 21 | 21 | 21 | 4.5-5.0 | 35 | ¦µ1240 | 560 | ||
| MLSE706-LG25 | 25 | 25 | 25 | 4.0-5.0 | 35 | 3200 | ¦µ1240 | 560 | 1610 |
