Lifeboats >> Auxiliary Equipment >> Davit >> Hinged Gravity Arm Type Davit
Product Name Hinged Gravity Arm Type Davit

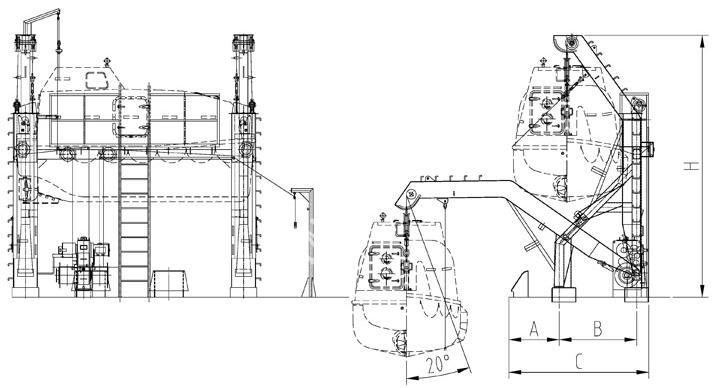

Product No. Max. Working Load A B C H Total Weight
KN MM MM MM MM KG
MLSE702-LB014 14 1050 1400 2680 4800 1800
MLSE702-LB030 30 1100 1400 2730 5100 2820
MLSE702-LB050 50 1200 1450 2800 5600 3800
MLSE702-LB060 60 1200 1600 2800 5600 3492
MLSE702-LB085 85 1600 1650 3430 6600 5000
MLSE702-LB120 120 1600 1800 3600 7500 6500
MLSE702-LB145 145 1500 2600 4420 8000 6800
