Marine Navigation System >> Compass >> Magnetic Compass >> Type CPT-165A Table Model Magnetic Compass
|
|||
| Product Name | Type CPT-165A Table Model Magnetic Compass | ||
| product NO. | MENS066-MC06 | ||
| introduction | CPT-165 Magnetic Compass is a sort of table model liquid magnetic compass.It is used for the middle and small vessels acting as steering compass.The compass is a magnetic compass class A and it is designed and manufactured on the basis of the national standard GB/T 14108-93 ( General Technical Terms of Marine Magnetic Compass Class A ),its technical performance index are completely in accordance with the national standard .The product has the advantages of beautiful outline,high precision,convenient correcting difference,steady performance and legible lighting etc.It is the essential navigation instrument for the middle and small vessels. |
||
| main technical parameters | Modei |
Vertical |
|
Dial Diameter |
165mm |
||
Dial Graduation |
1°for each grid(0to360°) |
||
Using temperature |
-25℃to+70℃ |
||
Indicating deviation(H=35µT,T=20±3℃) |
≤0.5° |
||
Half period(H=35µT,T=20±3℃) |
≥8.62S |
||
Friction deviation(H=35µT,T=20±3℃) |
≤0.09° |
||
Main semicircle self heterodyne correcting energy |
1°to45° |
||
Quadrant self heterodyne correcting energy |
0.5°to10° |
||
inclining self heterodyne correcting energy |
-75µTto+75µT |
||
Lighting power supply |
AC220V DC24V |
||
Outline Dimension |
730×320×570mm |
||
packing size |
790×540×590mm |
||

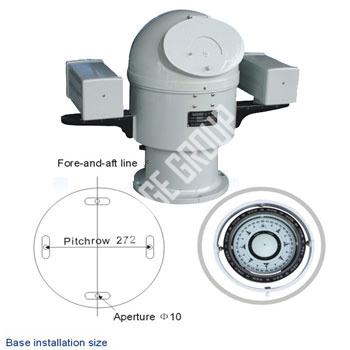

Diameter of mounting holes |
Pitchrow 270 ApertureΦ10 |
||
weight |
23kg |
||
