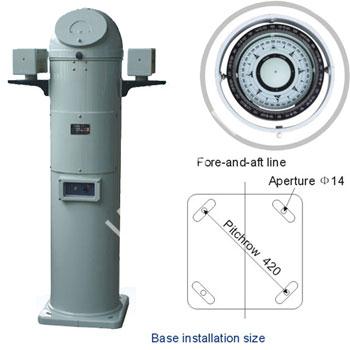

| Product Name | Type CPL-190 Vertical Magnetic Compass | ||
| Product No. | MENS061-MC01 | ||
| Product infos | CPL-190vertical Magnetic Compass is a sort of class A transparent liquid magnetic compass. It is designed and manufactured in accordance with the national standard GB/T 14108-93 (General Technical Terms of Marine Magnetic Compass Class A). The magnetic compass is suitable for the large and middle vessels acting as standard compass or steering compass and is used for measuring azimuth and indicating course heading.The product has the advantages of high precision,convenient correcting difference,steady performance and legible lighting etc. |
||
| main technical parameters | Modei |
Vertical |
|
Dial Diameter |
190mm |
||
Dial Graduation |
1°for each grid(0to360°) |
||
Using temperature |
-25℃to+70℃ |
||
Indicating deviation(H=35µT,T=20±3℃) |
≤0.5° |
||
Half period(H=35µT,T=20±3℃) |
≥8.62S |
||
Friction deviation(H=35µT,T=20±3℃) |
≤0.09° |
||
Main semicircle self heterodyne correcting energy |
1°to45° |
||
Secondary semicircle self heterodyne correcting energy |
1°to6°(magnetic inclination Q=45°) |
||
Quadrant self heterodyne correcting energy |
0.5°to10° |
||
inclining self heterodyne correcting energy |
-75µTto+75µT |
||
Lighting power supply |
AC220V DC24V |
||
Outline Dimension |
750×490×1350mm |
||
packing size |
800×540×1390mm |
||
Diameter of mounting holes |
Pitchrow 420ApertureΦ14 |
||
weight |
40kg |
||
