Marine transformer,Marine Transformer -Product Details

Marine Transformer >> Marine transformer


Product Name		Marine Transformer
General Specification
Standard		IEC 60076
Classification Society		ABS/BV/DNV/NK/KR/RINA/LR/CCS
Ambient Temperature		0~45 ��
Degree of Protection		Drip-proof (IP 23)
Model Specified

Single-phase Drip-proof Marine Transformer

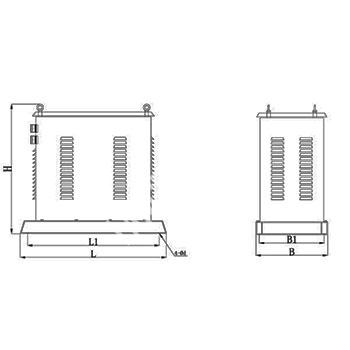

Product No.	Type	Rated Capacity (kVA)	Primary Rated Voltage (V)		Secondary Rated Voltage (V)		Vector Group	No-Load Loss (W)	Load Loss (W75��)	No-Load Current (%)	Imp. (%)	Dimension (mm)			Installation Size (mm)			Weight (KG)
			50 Hz	60 Hz	50 Hz	60 Hz						L	B	H	L1	B1	4-��d
MEPS002	CDD-5	5	400	450	400 230 115	450 230 115	lio	90	120	10	3	460	320	510	180	210	12	60
MEPS002	CDD-7.5	7.5						110	175	9	3	480	330	560	190	190	12	75
MEPS002	CDD-10	10						130	250	8	3	490	340	580	190	190	12	90
MEPS002	CDD-15	15						160	310	6	3	520	350	620	220	220	14	125
MEPS002	CDD-20	20						210	355	6	3	550	370	650	240	240	12	140
MEPS002	CDD-25	25						260	420	6	3	570	390	670	250	250	14	180
MEPS002	CDD-30	30						310	530	5	3	580	420	750	260	260	14	210
MEPS002	CDD-35	35						320	600	5	3	610	420	750	260	260	14	245
MEPS002	CDD-40	40						330	680	4	3	620	430	760	260	260	14	260
MEPS002	CDD-45	45						345	695	4	3	630	430	780	260	260	14	280
MEPS002	CDD-50	50						360	715	4	3	640	450	820	270	270	14	290
MEPS002	CDD-60	60						410	780	4	3	650	460	840	270	270	18	340
MEPS002	CDD-63	63						420	810	4	3	650	460	840	270	270	18	345
MEPS002	CDD-75	75						480	920	3	3	660	460	900	270	270	18	410
MEPS002	CDD-80	80						510	975	3	3	670	470	920	280	280	18	430
MEPS002	CDD-90	90						540	1055	3	3	680	470	990	280	280	22	500
MEPS002	CDD-100	100						580	1160	3	3	700	480	1070	300	300	22	580
Description
This kind of Marine Transformer is suitable for voltage below 500 V, frequency 50 Hz or 60 Hz, capactity 0.5~100 kVA for single-phase, 3~100 kVA for three-phase marine electrical power system.
