Marine Navigation System >> Radar >> Radar 1512-B
 |
||

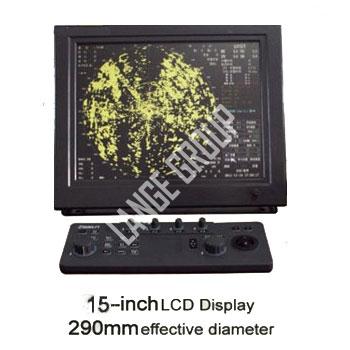

| Product Name | RADAR 1512-B | |
| Product No. | MENS023-RD03 | |
| Feature | 15-inch high-resolution LCD radar optimized detection with variable antenna rotation speeds |
|
LCD display providing crisp radar images |
||
Friendly user interface with one-touch function keys. |
||
Real time GPS for any points in radar circle area and set routes displayed in GPS. |
||
High-speed computer video processing techniques to enhance the noise suppression. |
||
High-performance target-tracking function by innovative ARPA algorithm. |
||
Echoes in yellow, green or dark red in 8 levels of colors |
||
The motion vectors displayed with mixed echo (100 targets in the sea) |
||
| Specification | DISPLAY |
15" Color LCD |
ANTENNA LENGTH |
6 Feet |
|
RANGE |
48NM |
|
EFFECTIVE DIAMETER |
215mm |
|
POWER OUTPUT |
12KW |
|
POWER SUPPLY |
24VDC |
|
