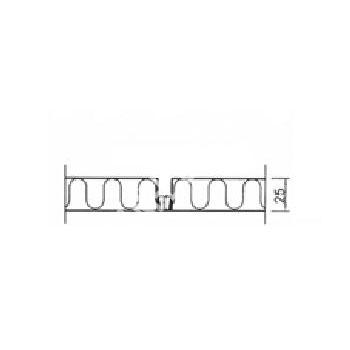

Marine Non-Metal Materials >> Panel System >> Wall Panel >> Type C Composite Glass Wool Lining Panel
 |
 | |
| Product Name | Type C Composite Glass Wool Lining Panel | |
| Product No. | MMDE100-LP007 | |
| Fire Classification | B-0 | |
| Weight | 10.3Kg/m² | |
| Sound Reduction | 30dB(A) | |
| Thermal Transmittance | 0.92Kcal/m²h¡¤¡ãC | |
| Core Material | Glass Wool | |
| Surface Material | Galvanized Steel Sheet | |
| Coating | PVC/PET Film Laminated(Low Flame-Spread) | |
| Dimension | 600/500mm Width, Required Length(Max.3600mm Height) | |
| Tolerances | Width¡À1,Height¡À3 ,Thickness¡À1 | |
