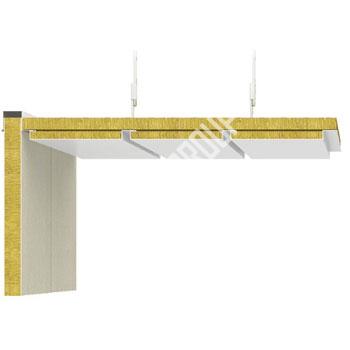

Marine Non-Metal Materials >> Panel System >> Ceiling >> Type D Ceiling PanelType D Acoustic Ceiling panel
|  ¡¡ | ||||
| Product Name: | Type D Acoustic Ceiling panel | ||||
| Product No.: | MMDE300-CE007 | ||||
| Type | T75DXY | ||||
| Fire class | B-15 | ||||
| Dimension | 75mm(t)x300mm(w)xlength(max.3900mm) | ||||
| Weight | 12.7kg/m2 | ||||
| Sound reduction | 0.85dB | ||||
| Thermal transmittance | 0.40Kcal/m2h£®¡æ | ||||
| Surface finish | PVC/PET film Laminated (low flame-spread) or galvanized Steel sheet | ||||
| Tolerances | Width¡À1 , Height ¡À3 , Thickness¡À1 | ||||
| Core material | Rock wool 180kg/m3 | ||||
