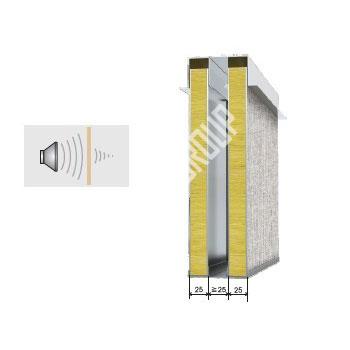

Marine Non-Metal Materials >> Panel System >> Wall Panel >> Type C Wall PanelType C Acoustic wall panel
| ¡¡  | ||||
| Product Name: | Type C Acoustic wall panel | ||||
| Product No.: | MMDE100-PP006 | ||||
| Type | SB25C | ||||
| Fire class | B-15/B-30 | ||||
| Dimension | (25+25+25mm)(t)x550mm(w)xlength(max.3500mm) | ||||
| Weight | 25.6kg/m2 | ||||
| Sound reduction | 56dB | ||||
| Thermal transmittance | 0.48 Kcal/m2h£®¡æ | ||||
| Surface finish | PVC/PET film Laminated (low flame-spread) or galvanized Steel sheet | ||||
| Tolerances | Width¡À1 , Height ¡À3 , Thickness¡À1 | ||||
| Core material | Rock wool 150kg/m3 | ||||
