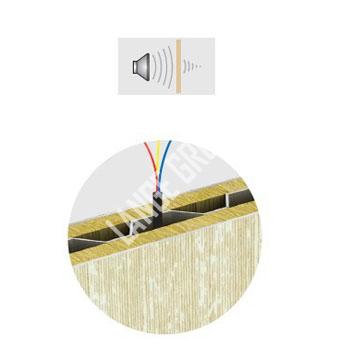

Marine Non-Metal Materials >> Panel System >> Wall Panel >> Type M Wall PanelType M acoustic wall panel with cable slot
|  ¡¡ | ||||
| Product Name: | Type M acoustic wall panel with cable slot | ||||
| Product No.: | MMDE100-PP019 | ||||
| Type | B50MG | ||||
| Fire class | B-15 | ||||
| Dimension | 50mm(t)x550mm(w)xlength(max.3500mm) | ||||
| Weight | 22.4kg/m2 | ||||
| Sound reduction | 45dB | ||||
| Thermal transmittance | 0.55 Kcal/m2h£®¡æ | ||||
| Surface finish | PVC/PET film Laminated (low flame-spread) or galvanized Steel sheet | ||||
| Tolerances | Width¡À1 , Height ¡À3 , Thickness¡À1 | ||||
| Core material | Rock wool 150kg/m3 | ||||
