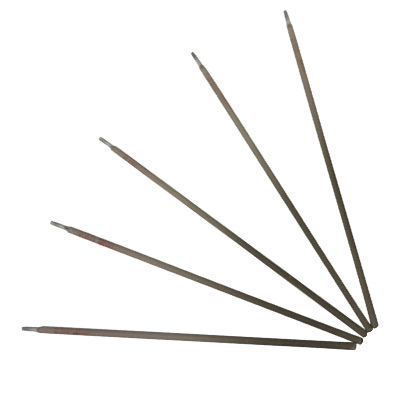

Marine Welding Materials >> Welding Electrode >> Mild Steel Electrode >> E6010Mild Steel electrode AWS E6010
 |
|||||||||
| Product Name | Mild Steel electrode | ||||||||
| Product No. | MHAE411-WE002 | ||||||||
| Standard | |||||||||
| GB | E4310 | ||||||||
| AWS | E6010กก | ||||||||
| Type of Covering | High cellulose Sodium | ||||||||
| Welding Position | F,VD,OH,H | ||||||||
| Chemical Composition | C | Mn | Si | S | P | Ni | Mo | Cr | V |
| Typical | 0.091 | 0.55 | 0.17 | 0.010 | 0.011 | 0.011 | 0.001 | 0.022 | 0.01 |
| Mechanical Properties of Deposited Metal | |||||||||
| Test Item | Tensile Strengh | Yield Point | Elongation | Akv1 | |||||
| Rm(MPa) | ReL(MPa) | A4(%) | (J) | ||||||
| Typical | 500 | 400 | 29 | 80 | |||||
| Reference Current (DC+) | |||||||||
| Electrode Diameter(mm) | Length(mm) | Welding Current(A) | |||||||
| F | H | OH | VD | ||||||
| 2.5 | 350 | 60-90 | 60-90 | 50-80 | 50-80 | ||||
| 3.2 | 350 | 70-110 | 70-110 | 60-100 | 60-100 | ||||
| 4.0 | 350 | 110-150 | 110-150 | 100-140 | 100-140 | ||||
| 5.0 | 350 | 150-200 | 150-200 | 140-180 | 140-180 | ||||
| Application | |||||||||
| It is for all position welding general structures,including vertical down welding,especially pipelines,vessels. | |||||||||
