Marine Pipe Fitting >> Union Joint >> Carbon Steel >> Straight Thread Long Connector(Welding style joint)
กก  | |||||||||

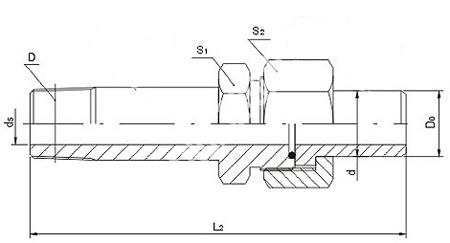

| Product Name | Taper thread end straight long coupling(Welding style joint) | ||||||||
| Product No: | Pipe(OD) | D5 | D | d | L2 | S1 | S2 | ||
| 60กใ | 55กใ | ||||||||
| MFVE607-CJ01 | 6 | 4 | NPT1/8" | R1/8" | 7.5 | 76 | 14 | 14 | |
| MFVE607-CJ02 | 10 | 4 | NPT1/8" | R1/8" | 11 | 77 | 17 | 19 | |
| MFVE607-CJ03 | 10 | 6 | NPT1/4" | R1/4" | 11 | 81 | 17 | 19 | |
| MFVE607-CJ04 | 14 | 8 | NPT1/4" | R1/4" | 16 | 96 | 22 | 27 | |
| MFVE607-CJ05 | 14 | 10 | NPT3/8" | R3/8" | 16 | 98 | 22 | 27 | |
| MFVE607-CJ06 | 18 | 10 | NPT3/8" | R3/8" | 19 | 105 | 27 | 32 | |
| MFVE607-CJ07 | 18 | 12 | NPT1/2" | R1/2" | 19 | 109 | 27 | 32 | |
| MFVE607-CJ08 | 22 | 13 | NPT1/2" | R1/2" | 22 | 118 | 30 | 36 | |
| MFVE607-CJ09 | 22 | 15 | NPT3/4" | R3/4" | 22 | 120 | 30 | 36 | |
| MFVE607-CJ10 | 28 | 17 | NPT3/4" | R3/4" | 28 | 126 | 36 | 41 | |
| MFVE607-CJ11 | 28 | 20 | NPT1" | R1" | 28 | 126 | 36 | 41 | |
| MFVE607-CJ12 | 34 | 23 | NPT1" | R1" | 34 | 153 | 46 | 50 | |
| MFVE607-CJ13 | 34 | 25 | NPT1 1/4" | R1 1/4" | 34 | 157 | 46 | 50 | |
| MFVE607-CJ14 | 42 | 28 | NPT1 1/4" | R1 1/4" | 42 | 163 | 55 | 60 | |
| MFVE607-CJ15 | 42 | 32 | NPT1 1/2" | R1 1/2" | 42 | 163 | 55 | 60 | |
| MFVE607-CJ16 | 50 | 33 | NPT1 1/2" | R1 1/2" | 50 | 181 | 65 | 70 | |
