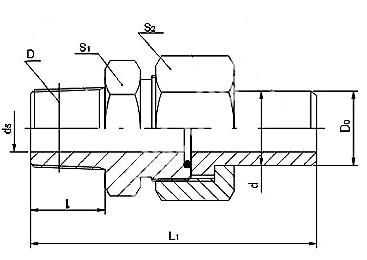

| Product Name | Taper thread end straight coupling(Welding style joint) | |||||||||
| Product No: | Pipe(OD) | D5 | D | l | d | L1 | S1 | S2 | ||
| 60กใ | 55กใ | |||||||||
| MFVE606-CJ01 | 6 | 4 | NPT1/8" | R1/8" | 9 | 7.5 | 45 | 14 | 14 | |
| MFVE606-CJ02 | 10 | 4 | NPT1/8" | R1/8" | 9 | 11 | 50 | 17 | 19 | |
| MFVE606-CJ03 | 10 | 6 | NPT1/4" | R1/4" | 13 | 11 | 54 | 17 | 19 | |
| MFVE606-CJ04 | 14 | 8 | NPT1/4" | R1/4" | 13 | 16 | 61 | 22 | 27 | |
| MFVE606-CJ05 | 14 | 10 | NPT3/8" | R3/8" | 15 | 16 | 63 | 22 | 27 | |
| MFVE606-CJ06 | 18 | 10 | NPT3/8" | R3/8" | 15 | 19 | 69 | 27 | 32 | |
| MFVE606-CJ07 | 18 | 12 | NPT1/2" | R1/2" | 19 | 19 | 72 | 27 | 32 | |
| MFVE606-CJ08 | 22 | 13 | NPT1/2" | R1/2" | 19 | 22 | 74 | 30 | 36 | |
| MFVE606-CJ09 | 22 | 15 | NPT3/4" | R3/4" | 21 | 22 | 76 | 30 | 36 | |
| MFVE606-CJ10 | 28 | 17 | NPT3/4" | R3/4" | 21 | 28 | 82 | 36 | 41 | |
| MFVE606-CJ11 | 28 | 20 | NPT1" | R1" | 21 | 28 | 82 | 36 | 41 | |
| MFVE606-CJ12 | 34 | 23 | NPT1" | R1" | 21 | 34 | 93 | 46 | 50 | |
| MFVE606-CJ13 | 34 | 25 | NPT1 1/4" | R1 1/4" | 25 | 34 | 97 | 46 | 50 | |
| MFVE606-CJ14 | 42 | 28 | NPT1 1/4" | R1 1/4" | 25 | 42 | 103 | 55 | 60 | |
| MFVE606-CJ15 | 42 | 32 | NPT1 1/2" | R1 1/2" | 25 | 42 | 103 | 55 | 60 | |
| MFVE606-CJ16 | 50 | 33 | NPT1 1/2" | R1 1/2" | 25 | 50 | 111 | 65 | 70 | |
