Marine Pipe Fitting >> Tees >> Bronze >> JIS H3300 Socket Brazing Type Reducing Tee

¡¡

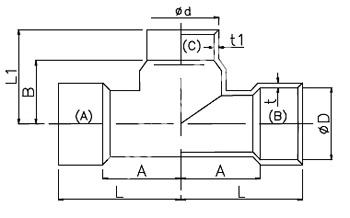

Product Name		Socket Brazing Type Reducing Tee
Standard		JIS H3300
Product NO:		DN	Pipe(OD)		Dimension
		(A)x(C)	(A)	(C)	D	d	A	B	L	L1	t	t1
MFVE605-TE01		10x8	15	12	15.1	12.1	14	17	26	27	1.4	1.2
MFVE605-TE02		15x8	20	12	20.1	12.1	15	20	29	30	1.6	1.2
MFVE605-TE03		15x10	20	15	20.1	15.1	15	15	29	27	1.6	1.4
MFVE605-TE04		20x8	20	12	25.1	12.1	17	25	32	35	1.6	1.2
MFVE605-TE05		20x10	25	15	25.1	15.1	17	24	32	34	1.6	1.4
MFVE605-TE06		20x15	25	20	25.1	20.1	17	20	32	34	1.6	1.6
MFVE605-TE07		25x10	25	15	30.1	15.1	19	30	35	42	1.6	1.4
MFVE605-TE08		25x15	30	20	30.1	20.1	19	27	35	41	1.6	1.6
MFVE605-TE09		25x20	30	25	30.1	25.1	19	25	35	40	1.6	1.6
MFVE605-TE10		32x10	30	15	35.1	15.1	24	39	40	52	1.6	1.4
MFVE605-TE11		32x15	35	20	35.1	20.1	24	37	40	51	1.6	1.6
MFVE605-TE12		32x20	35	25	35.1	25.1	24	35	40	50	1.6	1.6
MFVE605-TE13		32x25	35	30	35.1	30.1	24	32	40	50	1.6	1.6
MFVE605-TE14		40x10	45	15	45.1	15.1	27	47	45	60	2.3	1.4
MFVE605-TE15		40x15	45	20	45.1	20.1	27	45	45	59	2.3	1.6
MFVE605-TE16		40x20	45	25	45.1	25.1	27	43	45	58	2.3	1.6
MFVE605-TE17		40x25	45	30	45.1	30.1	27	40	45	58	2.3	1.6
MFVE605-TE18		40x32	45	35	45.1	35.1	27	35	45	52	2.3	1.6
MFVE605-TE19		50x15	55	20	55.1	20.1	35	54	55	68	2.3	1.6
MFVE605-TE20		50x20	55	25	55.1	25.1	35	52	55	67	2.3	1.6
MFVE605-TE21		50x25	55	30	55.1	30.1	35	50	55	66	2.3	1.6
MFVE605-TE22		50x32	55	35	55.1	35.1	35	48	55	66	2.3	1.6
MFVE605-TE23		50x40	55	45	55.1	45.1	35	44	55	62	2.3	2.3
