| Product Name | Socket Brazing Type Tee | ||||||||
| Standard | JIS H3300 | ||||||||

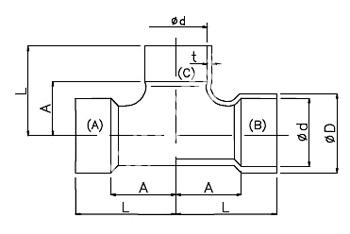

| Product NO: | Pipe | DIMENTION | Weight | ||||||
| DN | OD | D | d | A | L | t | |||
| MFVE604-TE01 | 8A | 12 | 14.5 | 12.1 | 12 | 20 | 1.2 | 0.081 | |
| MFVE604-TE02 | 10A | 15 | 17.9 | 15.1 | 14 | 26 | 1.4 | 0.037 | |
| MFVE604-TE03 | 15A | 20 | 23.3 | 20.1 | 15 | 28 | 1.6 | 0.059 | |
| MFVE604-TE04 | 20A | 25 | 28.7 | 25.1 | 17 | 32 | 1.6 | 0.091 | |
| MFVE604-TE05 | 25A | 30 | 33.7 | 30.1 | 20 | 36 | 1.6 | 0.121 | |
| MFVE604-TE06 | 32A | 35 | 39.7 | 35.1 | 24 | 42 | 1.6 | 0.19 | |
| MFVE604-TE07 | 40A | 45 | 49.7 | 45.1 | 30 | 50 | 2.3 | 0.328 | |
| MFVE604-TE08 | 50A | 55 | 61.1 | 55.1 | 35 | 57 | 2.3 | 0.527 | |
| MFVE604-TE09 | 65A | 70 | 75.1 | 70.1 | 44 | 70 | 2.5 | 0.765 | |
| MFVE604-TE10 | 80A | 85 | 90.1 | 85.1 | 47 | 77 | 2.5 | 1.032 | |
