Marine Fire Suppression System >> Parts >> Fire Hoses >> EPDM Lining Fire HoseDouble Jacket EPDM Lining Fire Hose
 |
 |
|||||
| Product name | Double Jacket EPDM Lining Fire Hose | |||||
| Product No. | MFFE003-DJEP | |||||
| Feature | ||||||

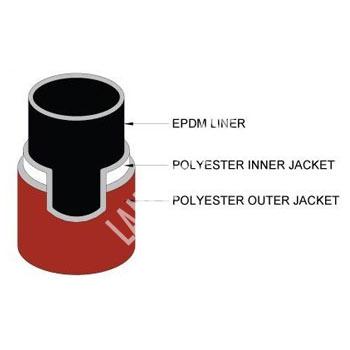

| Traditional double jacket, rubber lined industrial hose made from high tensile strength polyester yarn with a lining of extruded EPDM. Treatment greatly increases abrasion, heat, flame and petrochemical resistance while virtually eliminating water pick-up. When treated, it is immune to mildew and no drying is required. Hose remains flexible to temperatures as low as -40oand is resistant to ozone, oxidation and most chemicals or petroleum products. Available with aluminum NST or IPT threaded couplings.Excellent for tough applications such as construction sites, mines and industrial fire fighting |
||||||
| I.D.(Inch/mm) |
Working Pressure (Bar/Psi) |
Burst Pressure (Bar/Psi) |
Certification | |||
| 1-1/2" | 38 | 2.0/20/300,2.5/25/360,3.0/30/450 | 6.0/60/900,7.5/75/1100,9.0/90/1300 | - | ||
| 2" | 52 | 2.0/20/300,2.5/25/360,3.0/30/450 | 6.0/60/900,7.5/75/1100,9.0/90/1300 | - | ||
| 2-1/2" | 65 | 2.0/20/300,2.5/25/360,3.0/30/450 | 6.0/60/900,7.5/75/1100,9.0/90/1300 | - | ||
| Application | ||||||
| Industrial and municipal fire brigades Military Marine fire fighting Interior rack and reel hose Commercial and civil engineering |
||||||
| Couplings available | Storz & John Morris & Italy & Machino & Nakajima couplings and other type on your request. | |||||
