Marine Fire Suppression System >> Parts >> Fire Hoses >> TPE/TPR Lining Fire HoseDouble Jacket TPE/TPR Lining Fire Hose
 |
 |
|||||
| Product name | Double Jacket TPE/TPR Lining Fire Hose | |||||
| Product No. | MFFE003-DJTP | |||||
| Feature | ||||||
| Double jacket£º the hose is made of high tenacity polyester staple and polyester filaments or polyester filaments as weave jacket, lining is TPE/TPR. The jacket is plain or twill weaves. The jacket constructions include a second closely woven jacket for extra durability, safety factor, and higher service pressure. Character£º higher pressure resistance, aging and Ozone resistance. |
||||||
| I.D.(Inch/mm) |
Working Pressure (Bar/Psi) |
Burst Pressure (Bar/Psi) |
Certification | |||
| 1" | 25 | 2.0/20/300,2.5/25/370,3.0/30/450 | 6.0/60/900,7.5/75/1100, 9.0/90/1300 | - | ||
| 1-1/2" | 38 | 2.0/20/300,2.5/25/370,3.0/30/450 | 6.0/60/900, 7.5/75/1100, 9.0/90/1300 | - | ||
| 1-3/4" | 45 | 2.0/20/300,2.5/25/370,3.0/30/450 | 6.0/60/900,7.5/75/1100, 9.0/90/1300 | - | ||
| 2" | 52 | 2.0/20/300,2.5/25/370,3.0/30/450 | 6.0/60/900,7.5/75/1100, 9.0/90/1300 | - | ||
| 2-1/2" | 65 | 2.0/20/300,2.5/25/370,3.0/30/450 | 6.0/60/900,7.5/75/1100, 9.0/90/1300 | - | ||
| Application | ||||||
| Industrial and municipal fire brigades Military Marine fire fighting Interior rack and reel hose Commercial and civil engineering |
||||||
| Couplings available | Storz & John Morris & Italy & Machino & Nakajima couplings and other type on your request. | |||||

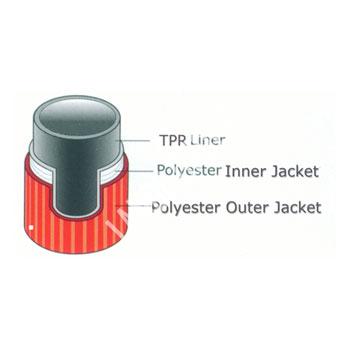

| Construction | Double jacket, high tenacity filament or nylon Filament as warp and weft,TPR cover and liner. |
|||||
