Lifting Grabs >> Round Steel Grab >> C Type Double Plate Bending-Single-Ear >> C Type Double Plate Bending (Single-Ear)
 |
 | |||||||||||||
| Product Name | C Type Double Plate Bending (Single-Ear) | |||||||||||||
| Product Material | Steel | |||||||||||||

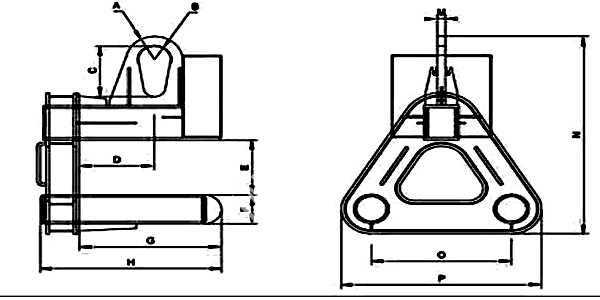

| Product No. | Wll | A | B | C | D | E | F | G | H | M | N | O | P | Weight |
| MHAE019-CL001 | 30 | 280 | 160 | 560 | 750 | 700 | 325 | 1400 | 1770 | 60 | 2380 | 1600 | 2145 | 4800 |
| Note: Apply To For Steel Plate's Horizontal Hoisting. | ||||||||||||||
