Lifting Grabs >> Round Steel Grab >> C Type Double Plate Bending-Double-Rings Type >> C Type Double Plate Bending(Double-Rings Type)
 |
 | |||||||||||
| Product Name | C Type Double Plate Bending(Double-Rings Type) | |||||||||||
| Product Material | Steel | |||||||||||

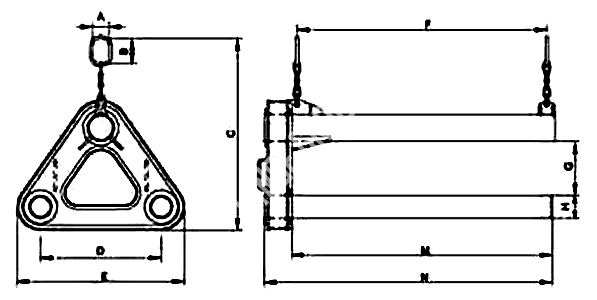

| Product No. | Wll | A | B | C | D | E | F | G | H | M | N | Weight |
| MHAE019-CB001 | 10 | 200 | 300 | 2300 | 14500 | 2010 | 3000 | 650 | 273 | 3130 | 3480 | 2800 |
| Note: Apply To Steel Plates And Rods Horizontal Hoisting. | ||||||||||||
