Lifting Grabs >> Round Steel Grab >> Double-Side Vertical Wrapped Plate Grab >> Double-Side Vertical Wrapped Plate Clamp
Product Name Double-Side Vertical Wrapped Plate Clamp
Product Material Steel
Product No. WLL Steel coil inside dia. Score of application

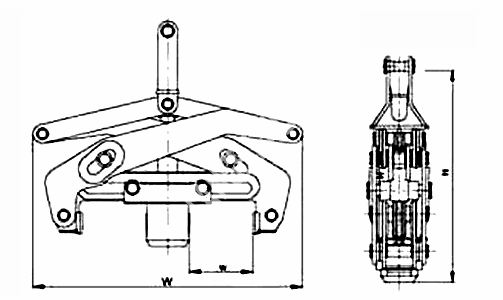

w		 Max Overall Size Weight
W H
MHAE019-DS001 20 ¦µ600 200-725 3650 5550 6700
MHAE019-DS002 32 ¦µ610-720 120-720 3600 6200 6700
MHAE019-DS003 32 ¦µ762 550-770 3400 4500 6700
MHAE019-DS004 40 ¦µ762 420-720 3600 4500 7200

Note:
1.Filing applied to the lifting, using automatic averaged working principle, its structure is simple and reasonable, The movement is flexible transports safely reliable.
2.Does not provide any force to be derived from the re-locking, the closed-positioning the realization of automatic shut up the opening and closing movements.
