Lifting Grabs >> Round Steel Grab >> Single-Side Vertical Wrapped Plate Grab >> Single-Side Vertical Wrapped Plate Grab
Product Name Single-Side Vertical Wrapped Plate Grab
Product Material Steel

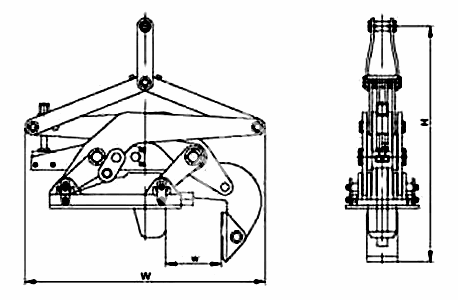

Product No. WLL Steel volume inside Min Dia. Score of application
w		 Max Overall Size Weight
W H
MHAE019-VW001 4 ¦µ500 200-550 2400 3800 2500
MHAE019-VW002 8 ¦µ630 330-485 2400 3400 2600
MHAE019-VW003 12.5 ¦µ762 250-570 2500 4000 2800
MHAE019-VW004 32 ¦µ740 385-555 2800 4000 6300

Note:
1.Filing applied to the lifting, using automatic averaged working principle, its structure is simple and reasonable, The movement is flexible transports safely reliable
2.Does not provide any force to be derived from the re-locking, the closed-positioning the realization of automatic shut up the opening and closing movements.
