Product Name |
Beam Roller Hoisting Mechanisms | ||||||||
|
Product Material |
Steel | ||||||||
|
Product No. |

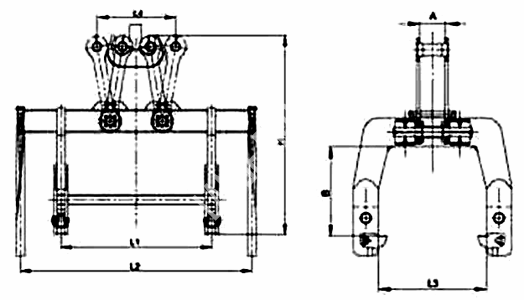

WLL | L1 | L2 | L3 | L4 | A | B | H | Weight |
|
MHAE019-BH001 |
70 | 2900 | 4705 | 1750 | 2180 | 300 | 1525 | 3465 | 8100 |
|
MHAE019-BH002 |
80 | 3000 | 4500 | 1710 | 2160 | 250 | 1535 | 3435 | 8500 |
|
MHAE019-BH003 |
85 | 3170 | 4770 | 1756 | 2180 | 280 | 1525 | 3830 | 8900 |
