Lifting Grabs >> Roll Grab >> Double Roller Hoisting Mechanisms >> Double Roller Hoisting Mechanisms
 |
 | |||||||
|---|---|---|---|---|---|---|---|---|
| Product Name | Double Roller Hoisting Mechanisms | |||||||
| Product Material | Steel | |||||||

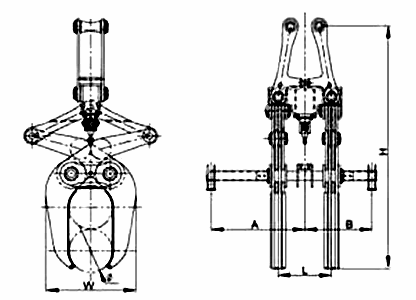

| Product No. | WLL | Roll Dia. ¦µ | Max Outside Size | Span L | Distance A | Distance B | Weight | |
| W | H | |||||||
| MHAE019-DH001 | 10 | ¦µ410-¦µ500 | 1200 | 2900 | 600 | 835 | 855 | 2000 |
| MHAE019-DH002 | 20 | ¦µ500-¦µ550 | 1500 | 3000 | 800 | 1100 | 1100 | 3000 |
| MHAE019-DH003 | 20 | ¦µ550-¦µ650 | 1400 | 3500 | 800 | 1080 | 1080 | 3900 |
| MHAE019-DH004 | 25 | ¦µ645-¦µ730 | 1500 | 3800 | 800 | 1430 | 1100 | 5500 |
| MHAE019-DH005 | 32 | ¦µ645-¦µ820 | 3100 | 4300 | 800 | 1450 | 1120 | 6800 |
| MHAE019-DH006 | 32 | ¦µ630-¦µ700 | 1700 | 4500 | 1000 | 1750 | 1250 | 6800 |
| MHAE019-DH007 | 40 | ¦µ605-¦µ805 | 1900 | 4750 | 950 | 1458 | 1143 | 8300 |
| MHAE019-DH008 | 40 | ¦µ630-¦µ850 | 2100 | 5000 | 1000 | 1500 | 1500 | 9000 |
| MHAE019-DH009 | 50 | ¦µ580-¦µ825 | 1850 | 5000 | 950 | 1655 | 1335 | 9200 |
| MHAE019-DH010 | 63 | ¦µ540-¦µ950 | 2100 | 5600 | 1000 | 1300 | 1600 | 14000 |
| Note: 1. The use of automatic control gate opening and closing gag, and support agencies in support of the roller bearing seat, and the clamp-contact roller body parts of the installation of copper can effectively protect from harm roll. 2. Institutional support can be adjusted, can be applied to different diameter roll | ||||||||
