Lifting Grabs >> Roll Grab >> Single Roller Hoisting Mechanisms >> Single Roller Hoisting Mechanisms
 |
 | |||||||
| Product Name | Single Roller Hoisting Mechanisms | |||||||
| Product Material | Steel | |||||||

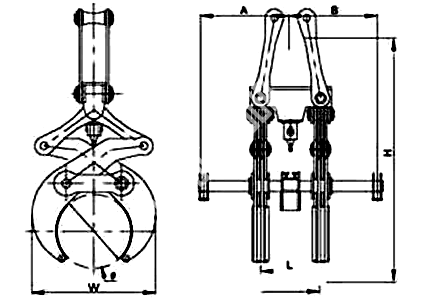

| Product No. | Wll | Roll Dia. ¦µ W | Max Outside Size | Span L | Distance A | Distance B | Weight | |
| W | H | |||||||
| MHAE019-RH001 | 16 | ¦µ645-¦µ820 | 1800 | 3300 | 600 | 1300 | 1300 | 3200 |
| MHAE019-RH002 | 20 | ¦µ630-¦µ850 | 1650 | 3600 | 1000 | 1750 | 1750 | 4500 |
| MHAE019-RH003 | 20 | ¦µ540-¦µ800 | 1700 | 3800 | 850 | 1425 | 1425 | 5800 |
| MHAE019-RH004 | 25 | ¦µ630-¦µ800 | 1600 | 3650 | 1000 | 1510 | 1510 | 3500 |
| MHAE019-RH005 | 32 | ¦µ860-¦µ1070 | 2300 | 4000 | 600 | 1040 | 1040 | 5300 |
| MHAE019-RH006 | 32 | ¦µ1250-¦µ1350 | 3500 | 4300 | 1000 | 500 | 500 | 6500 |
| MHAE019-RH007 | 63 | ¦µ1100-¦µ1350 | 2950 | 5200 | 1000 | 1400 | 1400 | 15500 |
| Note: 1. The use of automatic control gate opening and closing gag, and support agencies in support of the roller bearing seat, and the clamp-contact roller body parts of the installation of copper can effectively protect from harm roll. 2. Institutional support can be adjusted, can be applied to different diameter roll. | ||||||||
