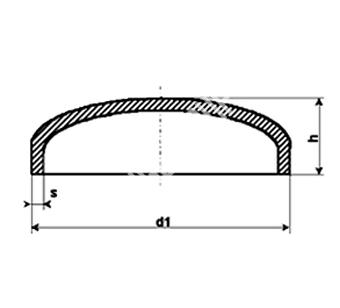

| Product Name | Stainless Steel Cap | ||||||
| Standard | DIN 2609 | ||||||
| Prdocuct NO: | DN | d1 | Wall Thickness | h | |||
| 1 | 2 | 3 | |||||
| MFVE603-CP01 | 15 | 21.3 | 2 | 3.2 | 4 | 25 | |
| MFVE603-CP02 | 20 | 26.9 | 2.3 | 3.2 | 4 | 25 | |
| MFVE603-CP03 | 25 | 33.7 | 2.6 | 3.2 | 4 | 38 | |
| MFVE603-CP04 | 32 | 42.4 | 2.6 | 3.6 | 4 | 38 | |
| MFVE603-CP05 | 40 | 48.3 | 2.6 | 4 | 5 | 38 | |
| MFVE603-CP06 | 50 | 60.3 | 2.9 | 4.5 | 5.6 | 38 | |
| MFVE603-CP07 | 65 | 76.1 | 2.9 | 5 | 7.1 | 38 | |
| MFVE603-CP08 | 80 | 88.9 | 3.2 | 5.6 | 8 | 51 | |
| MFVE603-CP09 | 100 | 114.3 | 3.6 | 6.3 | 8.8 | 64 | |
| MFVE603-CP10 | 125 | 139.7 | 4 | 6.3 | 10 | 76 | |
| MFVE603-CP11 | 150 | 168.3 | 4.5 | 7.1 | 11 | 89 | |
| MFVE603-CP12 | 200 | 219.1 | 6.3 | 8 | 12.5 | 102 | |
| MFVE603-CP13 | 250 | 273 | 6.3 | 8.8 | 14.2 | 127 | |
| MFVE603-CP14 | 300 | 323.9 | 7.1 | 10 | 16 | 152 | |
