Marine Fire Suppression System >> Parts >> Foam Equipments >> Fixed Foam EquipmentsPressure Air-foam Proportion Equipment
 |
 |
|||

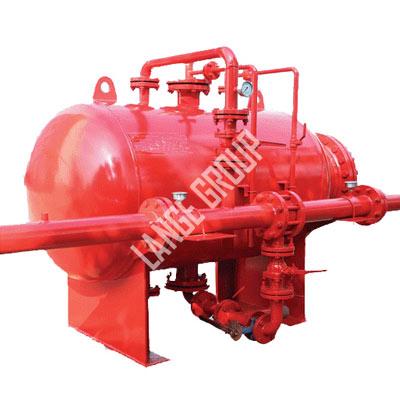

| Product name | Pressure Air-foam Proportion Equipment | |||
| produt No | MFFE018-PHY | |||
| Description | ||||
| PHY foam system is generally used in the oil storeroom, port, jetty, airport and petrochemical locations. When the pressured water flow, certain amount of foam will be immited into pressed water and form concentrate and then the concentrate will flow to foam producing equipment, such as foam gun, foam monitor and so on. Finally,foam is produced to put out fire. | ||||
| Type | PHYM32 | PHYM64 | PHYM100 | PHYM160 |
| mixture flow range(L/S) | 4-32 | 16-64 | 40-100 | 64-160 |
| Equipment inlet&outlet diameter(mm) | 80 | 100 | 150 | 200 |
| pressure loss(Mpa) | ¡Ü0.15 | ¡Ü0.15 | ¡Ü0.15 | ¡Ü0.12 |
| Foam tank volume£¨m3£© | 1.0,1.5,2.0,2.5,3.0 | 2.0,3.0,4.0,5.5 | 3.0,4.0,5.5,7.6,10.0 | 4.0,5.5,7.6,10.0 |
