| Product Name | Concentric Reducer | |||||||
| Standard | ANSI B 16.9 | |||||||

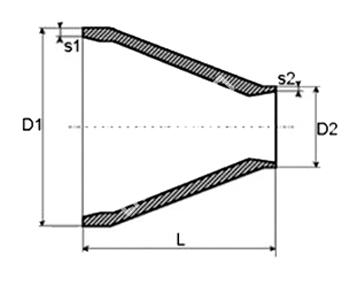

| Product No: | DN(in) | D1 | s1 | D2 | s2 | L | ||
| MFVE602-CR01 | 3/4 x 3/8 | 26.7 | 2.87 | 17.1 | 2.3 | 38.1 | ||
| MFVE602-CR02 | 3/4 x 1/2 | 26,70 | 2,87 | 21,30 | 2,77 | 38,10 | ||
| MFVE602-CR03 | 1 x 3/8 | 33,40 | 3,38 | 17,10 | 2,30 | 50,80 | ||
| MFVE602-CR04 | 1 x 1/2 | 33,40 | 3,38 | 21,30 | 2,77 | 50,80 | ||
| MFVE602-CR05 | 1 x 3/4 | 33,40 | 3,38 | 26,70 | 2,87 | 50,80 | ||
| MFVE602-CR06 | 1 1/4 x 1/2 | 42,20 | 3,56 | 21,30 | 2,77 | 50,80 | ||
| MFVE602-CR07 | 1 1/4 x 3/4 | 42,20 | 3,56 | 26,70 | 2,87 | 50,80 | ||
| MFVE602-CR08 | 1 1/4 x 1 | 42,20 | 3,56 | 33,40 | 3,38 | 50,80 | ||
| MFVE602-CR09 | 1 1/2 x 1/2 | 48,30 | 3,68 | 21,30 | 2,77 | 63,50 | ||
| MFVE602-CR10 | 1 1/2 x 3/4 | 48,30 | 3,68 | 26,70 | 2,87 | 63,50 | ||
| MFVE602-CR11 | 1 1/2 x 1 | 48,30 | 3,68 | 33,40 | 3,38 | 63,50 | ||
| MFVE602-CR12 | 1 1/2 x 1 1/4 | 48,30 | 3,68 | 42,20 | 3,56 | 63,50 | ||
| MFVE602-CR13 | 2 x 3/4 | 60,30 | 3,91 | 26,70 | 2,87 | 76,20 | ||
| MFVE602-CR14 | 2 x 1 | 60,30 | 3,91 | 33,40 | 3,38 | 76,20 | ||
| MFVE602-CR15 | 2 x 1 1/4 | 60,30 | 3,91 | 42,20 | 3,56 | 76,20 | ||
| MFVE602-CR16 | 2 x 1 1/2 | 60,30 | 3,91 | 48,30 | 3,68 | 76,20 | ||
| MFVE602-CR17 | 2 1/2 x 1 | 73,00 | 5,16 | 33,40 | 3,38 | 88,90 | ||
| MFVE602-CR18 | 2 1/2 x 1 1/4 | 73,00 | 5,16 | 42,20 | 3,56 | 88,90 | ||
| MFVE602-CR19 | 2 1/2 x 1 1/2 | 73,00 | 5,16 | 48,30 | 3,68 | 88,90 | ||
| MFVE602-CR20 | 2 1/2 x 2 | 73,00 | 5,16 | 60,30 | 3,91 | 88,90 | ||
| MFVE602-CR21 | 3 x 1 1/4 | 88,90 | 5,49 | 42,20 | 3,56 | 88,90 | ||
| MFVE602-CR22 | 3 x 1 1/2 | 68,90 | 5,49 | 48,30 | 3,68 | 88,90 | ||
| MFVE602-CR23 | 3 x 2 | 88,90 | 5,49 | 60,30 | 3,91 | 88,90 | ||
| MFVE602-CR24 | 3 x 2 1/2 | 88,90 | 5,49 | 73,00 | 5,16 | 88,90 | ||
| MFVE602-CR25 | 3 1/2 x 1 1/4 | 101,60 | 5,74 | 42,20 | 3,56 | 101,60 | ||
| MFVE602-CR26 | 3 1/2 x 1 1/2 | 101,60 | 5,74 | 48,30 | 3,68 | 101,60 | ||
| MFVE602-CR27 | 3 1/2 x 2 | 101,60 | 5,74 | 60,30 | 3,91 | 101,60 | ||
| MFVE602-CR28 | 3 1/2 x 2 1/2 | 101,60 | 5,74 | 73,00 | 5,16 | 101,60 | ||
| MFVE602-CR29 | 3 1/2 x 3 | 101,60 | 5,74 | 88,90 | 5,49 | 101,60 | ||
| MFVE602-CR30 | 4 x 1 1/2 | 114,30 | 6,02 | 48,30 | 3,68 | 101,60 | ||
| MFVE602-CR31 | 4 x 2 | 114,30 | 6,02 | 60,30 | 3,91 | 101,60 | ||
| MFVE602-CR32 | 4 x 2 1/2 | 114,30 | 6,02 | 73,00 | 5,16 | 101,60 | ||
| MFVE602-CR33 | 4 x 3 | 114,30 | 6,02 | 88,90 | 5,49 | 101,60 | ||
| MFVE602-CR34 | 4 x 3 1/2 | 114,30 | 6,02 | 101,60 | 5,74 | 101,60 | ||
| MFVE602-CR35 | 5 x 2 | 141,30 | 6,55 | 60,30 | 3,91 | 127,00 | ||
| MFVE602-CR36 | 5 x 2 1/2 | 141,30 | 6,55 | 73,00 | 5,16 | 127,00 | ||
| MFVE602-CR37 | 5 x 3 | 141,30 | 6,55 | 88,90 | 5,49 | 127,00 | ||
| MFVE602-CR38 | 5 x 3 1/2 | 141,30 | 6,55 | 101,60 | 5,74 | 127,00 | ||
| MFVE602-CR39 | 5 x 4 | 141,30 | 6,55 | 114,30 | 6,02 | 127,00 | ||
| MFVE602-CR40 | 6 x 2 1/2 | 168,30 | 7,11 | 73,00 | 5,16 | 139,70 | ||
| MFVE602-CR41 | 6 x 3 | 168,30 | 7,11 | 88,90 | 5,45 | 139,70 | ||
| MFVE602-CR42 | 6 x 3 1/2 | 168,30 | 7,11 | 101,60 | 5,70 | 139,70 | ||
| MFVE602-CR43 | 6 x 4 | 168,30 | 7,11 | 114,30 | 5,95 | 139,70 | ||
| MFVE602-CR44 | 6 x 5 | 168,30 | 7,11 | 141,20 | 6,45 | 139,70 | ||
| MFVE602-CR45 | 8 x 3 1/2 | 219,10 | 8,18 | 101,60 | 5,70 | 152,40 | ||
| MFVE602-CR46 | 8 x 4 | 219,10 | 8,18 | 114,30 | 5,95 | 152,40 | ||
| MFVE602-CR47 | 8 x 5 | 219,10 | 8,18 | 141,20 | 6,45 | 152,40 | ||
| MFVE602-CR48 | 8 x 6 | 219,10 | 8,18 | 168,40 | 7,11 | 152,40 | ||
| MFVE602-CR49 | 10 x 4 | 273,00 | 9,27 | 114,30 | 5,95 | 177,80 | ||
| MFVE602-CR50 | 10 x 5 | 273,00 | 9,27 | 141,20 | 6,45 | 177,80 | ||
| MFVE602-CR51 | 10 x 6 | 273,00 | 9,27 | 168,30 | 7,11 | 177,80 | ||
| MFVE602-CR52 | 10 x 8 | 273,00 | 9,27 | 219,10 | 8,18 | 177,80 | ||
| MFVE602-CR53 | 12 x 5 | 323,80 | 9,52 | 141,0 | 6,45 | 203,20 | ||
| MFVE602-CR54 | 12 X 6 | 323,80 | 9,52 | 168,30 | 7,11 | 203,20 | ||
| MFVE602-CR55 | 12 x 8 | 323,80 | 9,52 | 219,10 | 8,18 | 203,20 | ||
| MFVE602-CR56 | 12 x 10 | 323,80 | 9,52 | 273,00 | 9,27 | 203,20 | ||
