Lifting Grabs >> Plate Grab >> Single Ring Type Hanging Ears Slab Grab >> Hanging Ears Slab Clamp-Single Ring
Product Name Hanging Ears Slab Clamp-Single Ring
Product Material Steel

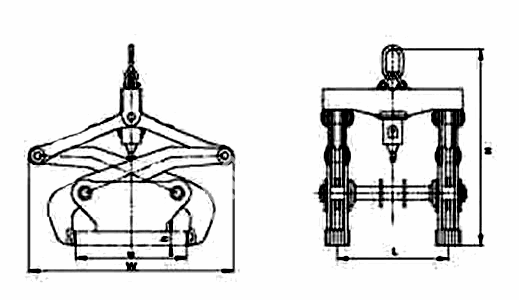

Product No. WLL Score of application Basic High-leg Span Max Overall size Weight
W H

MHAE019-SR001

 5 450-600 250 800 1200 1800 600

MHAE019-SR002

 5 650-1000 250 800 1500 2300 850

MHAE019-SR003

 8 150-450 250 1200 2000 2400 1300

MHAE019-SR004

 8 450-600 250 1200 1600 2500 1300

MHAE019-SR005

 8 450-750 300 1200 1600 2200 1350

MHAE019-SR006

 10 450-900 300 1500 1900 2600 2200

MHAE019-SR007

 10 650-1000 300 1500 1600 2200 1800

MHAE019-SR008

 10 700-1100 300 1500 1700 2600 1900

MHAE019-SR009

 12 450-750 300 2000 1800 2400 2600

MHAE019-SR010

 12 235-800 300 2000 2300 3000 2700

MHAE019-SR011

 16 600-1100 300 2500 2400 3100 4200

MHAE019-SR012

 16 850-1250 300 2500 2000 3000 4200

MHAE019-SR013

 20 800-1300 300 3000 2200 3400 4800

MHAE019-SR014

 20 950-1400 300 3000 2500 3500 4800

MHAE019-SR015

 20 1100-1600 300 3000 2400 3700 5000

MHAE019-SR016

 25 1000-1600 600 3000 3000 3900 6500

MHAE019-SR017

 25 1250-1750 450 3000 2800 3900 6500

MHAE019-SR018

 32 700-1350 450 3000 2900 4000 8000

MHAE019-SR019

 32 750-1400 450 3000 2800 4200 8000

MHAE019-SR020

 32 650-1500 450 3000 3400 4600 8000

MHAE019-SR021

 32 900-2150 600 3000 4400 6000 10000

MHAE019-SR022

 32 1000-2300 600 3000 4700 6300 10000

MHAE019-SR023

 40 850-1600 450 3500 3500 4900 11000

MHAE019-SR024

 40 1250-1750 450 3500 3000 3000 10000

MHAE019-SR025

 40 1600-2150 450 3500 3300 4300 11000

MHAE019-SR026

 50 1250-2150 450 4000 4000 5600 16800

MHAE019-SR027

 50 1850-2500 450 4000 3800 5000 17000

MHAE019-SR028

 50 1200-2750 750 4000 5600 7600 20000

MHAE019-SR029

 63 2050-2750 600 4000 4300 5800 24500

MHAE019-SR030

 80 750-1650 900 4500 5300 7100 28000
Note:
  1. Use of leverage working principle, simple structure and flexible action, the lift is Safe and reliable.
  2. Without any external force by self-locking, the closed-positioning the realization of automatic shut up the work of opening and closing.
  3. This sling used to single-hook hoisting lane.
