Clamps >> Single Steel Plate Lifting Clamps
 |
 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Product Name |
Single Steel Plate Lifting Clamps | ||||||||||
|
Product Material |
Steel | ||||||||||
|
Product No. |

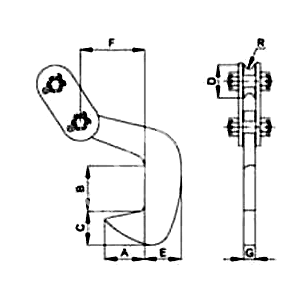

WLL/PAIR | STELL PLATE | A | B | C | D | E | F | G | R | WEIGHT |
| MHAE171-SS001 | 3 | 30กซ90 | 102 | 90 | 68 | 78 | 84 | 168 | 25 | 9 | 12 |
| MHAE171-SS002 | 5 | 40กซ100 | 108 | 100 | 73 | 88 | 97 | 172 | 30 | 11 | 15 |
| MHAE171-SS003 | 8 | 80กซ140 | 110 | 127.5 | 80 | 110 | 124 | 240 | 30 | 15 | 21.2 |
| MHAE171-SS004 | 10 | 90กซ150 | 122 | 155 | 85 | 120 | 141 | 260 | 35 | 15 | 27 |
| Note: 1. Using For Lifting Steel Plates Of One Or Some. 2. The Rated Load Means The Maximum Weight Which is Sustained By Clamps With The Included Angle Of 60 The Two Legs. 3. Hoisting Operations In Group 4 Complementary, And Must Be Set To Use Balance Beam, In The Process Of Being Lifted Onto A Collision Can Not Be Suspended. 4. Automatically Link 5. The Proof Load Is 2 Times Working Load Limit; The Breaking Load Is 4 Times Working Load Limit. 6. Please Read The Product Specification Carefully Before Using It. | |||||||||||
