Clamps >> Overturn Clamp

Product Name

Overturn Clamp

Product Material

Steel

Product No.

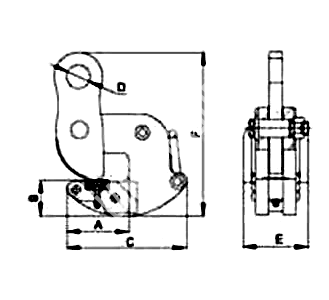

 WLL/PAIR STELL PLATE A B C D E F WEIGHT

MHAE171-OC001

 1.5 0¡«20 80 43 153 30 80 205 5.2

MHAE171-OC002

 2.5 0¡«30 105 52 190 35 90 270 8.7

MHAE171-OC003

 5 10¡«40 136 82 247 46 114 380 25

MHAE171-OC004

 10 20¡«50 160 85 300 60 129 410 35

Note£º
1. Using For Lifting Steel Plates Level And Steel Plate Or Steel For Overturn.
2. In The Process Of Being Lifted Onto A Collision Can Not Be Suspended.
3. Allowed For Lifting Of A Single Flip Clamp Is The Maximum Weight, The Lifting Operation Can Use Single.
4. You Must Add Balance Beam When It Is Lifted Level.
5. The Proof Load Is 2 Times Working Load Limit; The Breaking Load Is 4 Times Working Load Limit.
6. Please Read The Product Specification Carefully Before Using It.
