Lifting Beams >> 4 Fixed Suspension Points Lifting Beam
 |
 | |||||||
|---|---|---|---|---|---|---|---|---|
|
Product Name |
4 Fixed Suspension Points Lifting Beam | |||||||
|
Product Material |
Steel | |||||||
|
Product No. |

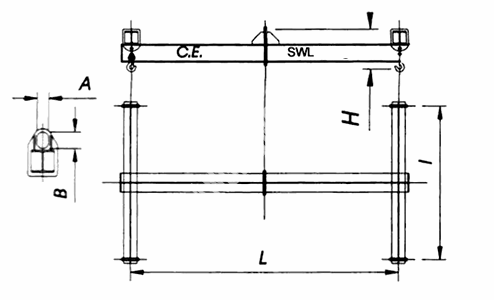

Options | Span (metres) | ||||||
| SWL | A x B | Heights and weights (mm) and (kg) | 2m / 1m | 3m / 1.5m | 4m / 2m | 5m / 2.5m | 6m / 3m | |
|
MHAE018-PS001 |
2 T | 70x100 | Approximate Height (H) mm | 290 | 290 | 290 | 290 | 290 |
| Approximate Weight kg | 115 | 190 | 275 | 465 | 590 | |||
|
MHAE018-PS002 |
3 T | 80x120 | Approximate Height (H) mm | 343 | 343 | 343 | 343 | 343 |
| Approximate Weight kg | 140 | 225 | 390 | 530 | 705 | |||
|
MHAE018-PS003 |
5 T | 90x140 | Approximate Height (H) mm | 405 | 405 | 405 | 405 | 405 |
| Approximate Weight kg | 185 | 280 | 465 | 690 | 880 | |||
|
MHAE018-PS004 |
8 T | 100x160 | Approximate Height (H) mm | 485 | 485 | 485 | 485 | 485 |
| Approximate Weight kg | 245 | 370 | 590 | 825 | 1110 | |||
|
MHAE018-PS005 |
10 T | 110x170 | Approximate Height (H) mm | 495 | 495 | 495 | 495 | 495 |
| Approximate Weight kg | 305 | 445 | 660 | 960 | 1230 | |||
| Note: 1. The lifting beams listed below are examples only. 2. All Lifting beams are made to order and therefore the design and lifting capacity can be modified to suit your individual requirements. | ||||||||
