Lifting Beams >> 2 Point Fixed Lifting Beam
 |
 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Product Name |
2 Point Fixed Lifting Beam | ||||||||
| Product Material | Steel | ||||||||
| Product No. | Options | Span (meter) | |||||||

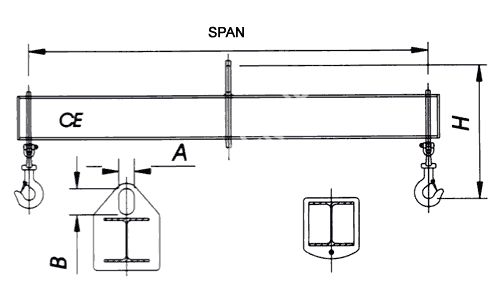

| SWL | A x B | Heights and weights (mm) and (kg) | 1 | 2 | 3 | 4 | 5 | 6 | |
|
MHAE018-PL001 |
1 T | 60x90 | Approximate Height (H) mm | 371 | 399 | 408 | 446 | 465 | 465 |
| Approximate Weight kg | 27 | 51 | 84 | 153 | 223 | 317 | |||
|
MHAE018-PL002 |
2 T | 70x100 | Approximate Height (H) mm | 414 | 451 | 491 | 508 | 548 | 568 |
| Approximate Weight kg | 30 | 64 | 121 | 186 | 330 | 433 | |||
|
MHAE018-PL003 |
3 T | 80x110 | Approximate Height (H) mm | 476 | 532 | 570 | 610 | 630 | 650 |
| Approximate Weight kg | 33 | 87 | 154 | 275 | 373 | 495 | |||
|
MHAE018-PL004 |
5 T | 90x140 | Approximate Height (H) mm | 574 | 631 | 670 | 710 | 750 | 770 |
| Approximate Weight kg | 46 | 113 | 194 | 320 | 502 | 649 | |||
|
MHAE018-PL005 |
8 T | 100x160 | Approximate Height (H) mm | 668 | 725 | 785 | 825 | 845 | 885 |
| Approximate Weight kg | 80 | 143 | 282 | 435 | 577 | 770 | |||
|
MHAE018-PL006 |
10 T | 110x170 | Approximate Height (H) mm | 746 | 804 | 844 | 884 | 944 | 984 |
| Approximate Weight kg | 110 | 186 | 302 | 462 | 685 | 886 | |||
Note:
| |||||||||
