Lifting Beams >> HLC Lifting Beams
 |
 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Product Name |
HLC Beams | ||||||||
|
Product Material |
Steel | ||||||||
|
Product No. |

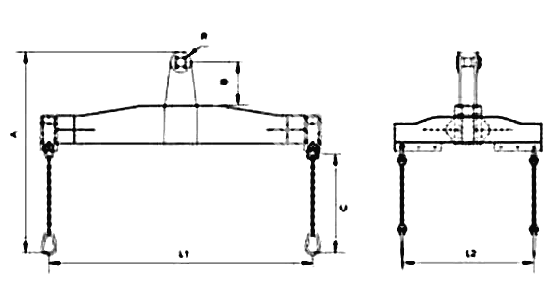

WLL | L1 | L2 | A | B | C | R | Dimensions | Self weight |
|
MHAE018-HC001 |
2 | 3 | 1-2 | 1450 | 220 | 800 | 100 | 3130¡Á2080¡Á1450 | 280 |
|
MHAE018-HC002 |
3.2 | 3 | 1-2 | 1480 | 220 | 835 | 100 | 3130¡Á2080¡Á1480 | 288 |
|
MHAE018-HC003 |
5 | 3 | 1-2 | 1500 | 220 | 835 | 100 | 3130¡Á2080¡Á1500 | 290 |
|
MHAE018-HC004 |
8 | 3 | 1-2 | 3500 | 385 | 2500 | 100 | 3180¡Á2240¡Á3500 | 1045 |
|
MHAE018-HC005 |
10 | 3 | 1-2 | 3600 | 445 | 2500 | 120 | 3180¡Á2240¡Á3600 | 1145 |
|
MHAE018-HC006 |
12.5 | 3 | 1-2 | 3700 | 445 | 2500 | 120 | 3180¡Á2240¡Á3700 | 1195 |
|
MHAE018-HC007 |
16 | 3 | 1-2 | 3750 | 450 | 2500 | 120 | 3180¡Á2240¡Á3750 | 1295 |
|
MHAE018-HC008 |
20 | 4 | 1-2 | 3800 | 565 | 2500 | 125 | 4200¡Á2240¡Á3800 | 1875 |
|
MHAE018-HC009 |
25 | 4 | 1-2 | 4000 | 650 | 2500 | 155 | 4200¡Á2240¡Á4000 | 2155 |
|
MHAE018-HC010 |
32 | 4 | 1-2 | 4100 | 650 | 2500 | 155 | 4220¡Á2240¡Á4100 | 2325 |
|
MHAE018-HC011 |
40 | 4 | 1-2 | 4100 | 650 | 2500 | 155 | 4250¡Á2240¡Á4100 | 2740 |
| Note: 1. Structure: ¡°¹¤¡±shaped and streamline form. 2. Parts: Pin, Chain Slings. 3. Function and characteristic: According to the dimensions of the load, adjusting the Chain Sling. | |||||||||
