Lifting Beams >> HLA Lifting Beams
 |
 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Product Name |
HLA Beams | ||||||||
|
Product Material |
Steel | ||||||||
|
Product No. |

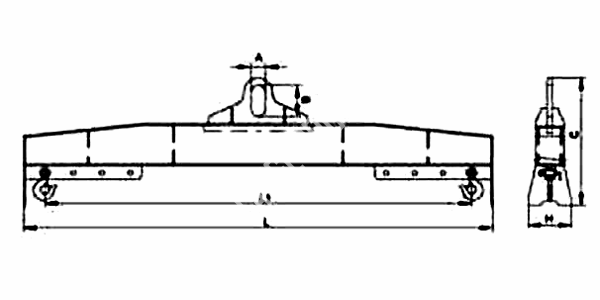

WLL | Adjusting scope | Effect Length | Dimensions | Self weight | ||||
| A | B | C | L | H | |||||
|
MHAE018-HL001 |
2 | 2-3 | 3 | 80 | 150 | 570 | 3184 | 180 | 145 |
|
MHAE018-HL002 |
3.2 | 3-5 | 5 | 100 | 220 | 830 | 5200 | 300 | 400 |
|
MHAE018-HL003 |
5 | 3-5 | 5 | 100 | 220 | 935 | 5300 | 300 | 520 |
|
MHAE018-HL004 |
8 | 4-6 | 6 | 160 | 360 | 1140 | 6312 | 340 | 980 |
|
MHAE018-HL005 |
10 | 4-6 | 6 | 160 | 360 | 1140 | 6312 | 340 | 1140 |
|
MHAE018-HL006 |
12.5 | 4-6 | 6 | 180 | 400 | 1320 | 6320 | 370 | 1385 |
|
MHAE018-HL007 |
16 | 6-8 | 8 | 180 | 430 | 1370 | 8320 | 450 | 2325 |
|
MHAE018-HL008 |
20 | 6-8 | 8 | 180 | 430 | 1485 | 8360 | 450 | 2635 |
|
MHAE018-HL009 |
25 | 6-8 | 8 | 200 | 500 | 1755 | 8500 | 530 | 3110 |
|
MHAE018-HL010 |
32 | 8-10 | 10 | 220 | 600 | 2135 | 10640 | 650 | 5435 |
|
MHAE018-HL011 |
40 | 8-10 | 10 | 220 | 600 | 2165 | 10640 | 650 | 5880 |
| Note: 1. Structure: Ħ°TĦħshaped and streamline form. 2. Parts: Pin. Eye Hook (swivel Hook). 3. Function and characteristic: According to the dimensions of the load, adjusting the Hook. | |||||||||
