Product Name |
Stainless Steel Tie Rods-UU Type | ||||||
|
Product Material |
Steel | ||||||
|
Product No. |

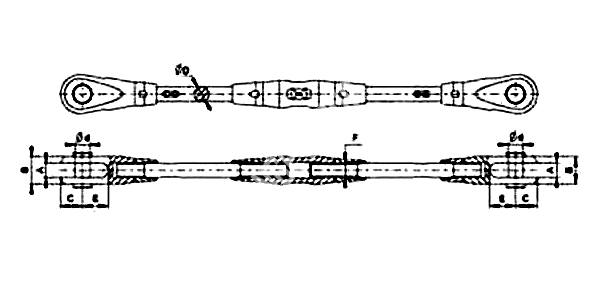

Diameter D | A | B | C | E | d | F |
|
MHAE057-TU001 |
12 | 12 | 22 | 18 | 24 | 11 | M12กม1.75 |
|
MHAE057-TU002 |
14 | 14 | 26 | 20 | 26 | 13 | M14กม2 |
|
MHAE057-TU003 |
16 | 16 | 30 | 24 | 30 | 15 | M16กม2 |
|
MHAE057-TU004 |
18 | 18 | 34 | 26 | 32 | 17 | M18กม2.5 |
|
MHAE057-TU005 |
20 | 20 | 38 | 30 | 36 | 19 | M20กม2.5 |
|
MHAE057-TU006 |
22 | 23 | 43 | 34 | 44 | 21 | M22กม2.5 |
|
MHAE057-TU007 |
25 | 25 | 47 | 36 | 46 | 24 | M24กม3 |
|
MHAE057-TU008 |
28 | 27 | 51 | 42 | 52 | 27 | M27กม3 |
|
MHAE057-TU009 |
30 | 27 | 51 | 47 | 57 | 29 | M30กม3.5 |
|
MHAE057-TU010 |
32 | 32 | 60 | 47 | 57 | 31 | M30กม3.5 |
|
MHAE057-TU011 |
35 | 32 | 60 | 54 | 64 | 34 | M33กม3.5 |
|
MHAE057-TU012 |
38 | 36 | 68 | 58 | 72 | 37 | M36กม4 |
|
MHAE057-TU013 |
40 | 38 | 72 | 62 | 76 | 39 | M39กม4 |
|
MHAE057-TU014 |
45 | 46 | 86 | 70 | 84 | 44 | M45กม4.5 |
|
MHAE057-TU015 |
50 | 50 | 94 | 74 | 90 | 49 | M48กม5 |
|
MHAE057-TU016 |
55 | 56 | 106 | 80 | 96 | 54 | M52กม5 |
|
MHAE057-TU017 |
60 | 61 | 116 | 90 | 106 | 59 | M58กม5.5 |
|
MHAE057-TU018 |
65 | 58 | 113 | 102 | 124 | 64 | M64กม6 |
|
MHAE057-TU019 |
70 | 63 | 123 | 112 | 134 | 69 | M68กม6 |
|
MHAE057-TU020 |
75 | 68 | 133 | 120 | 142 | 74 | M72กม6 |
|
MHAE057-TU021 |
80 | 74 | 144 | 130 | 156 | 79 | M76กม6 |
|
MHAE057-TU022 |
85 | 74 | 144 | 138 | 164 | 84 | M80กม6 |
|
MHAE057-TU023 |
90 | 79 | 154 | 145 | 171 | 88 | M85กม6 |
|
MHAE057-TU024 |
95 | 84 | 164 | 154 | 184 | 93 | M90กม6 |
|
MHAE057-TU025 |
100 | 89 | 174 | 160 | 192 | 98 | M95กม6 |
| Noteฃบ 1. The O1 type steel tie rod can assemble use With [1]type only need to change the specification of screw thread. 2. The quantity of adjustment sleeve is according to the length of body of rod and adjustment distance. | |||||||
