Stainless Steel Tie Rods-OU Type,Shipyard Steel Tie Rods,Steel Tie Rod,Common-Sling Connectings -Product Details


Product Name	Stainless Steel Tie Rods-OU Type
Product Material	Steel

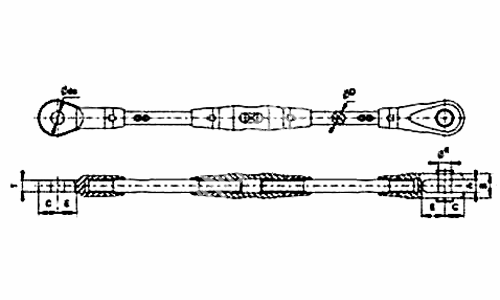

Product No.	Diameter D	T	A	B	C	E	d	do
MHAE057-TS001	12	10	12	22	18	24	11	11.5
MHAE057-TS002	14	12	14	26	20	26	13	13.5
MHAE057-TS003	16	14	16	30	24	30	15	15.5
MHAE057-TS004	18	16	18	34	26	32	17	17.5
MHAE057-TS005	20	18	20	38	30	36	19	19.5
MHAE057-TS006	22	20	23	43	34	44	21	21.5
MHAE057-TS007	25	22	25	47	36	46	24	24.5
MHAE057-TS008	28	24	27	51	42	52	27	27.5
MHAE057-TS009	30	24	27	51	47	57	29	29.5
MHAE057-TS010	32	28	32	60	47	57	31	31.5
MHAE057-TS011	35	28	32	60	54	64	34	34.5
MHAE057-TS012	38	32	36	68	58	72	37	37.5
MHAE057-TS013	40	34	38	72	62	76	39	39.5
MHAE057-TS014	45	40	46	86	70	84	44	44.5
MHAE057-TS015	50	44	50	94	74	90	49	50
MHAE057-TS016	55	50	56	106	80	96	54	55
MHAE057-TS017	60	55	61	116	90	106	59	60
MHAE057-TS018	65	55	58	113	102	124	64	65
MHAE057-TS019	70	60	63	123	112	134	69	70
MHAE057-TS020	75	65	68	133	120	142	74	75
MHAE057-TS021	80	70	74	144	130	156	79	80
MHAE057-TS022	85	70	74	144	138	164	84	85
MHAE057-TS023	90	75	79	154	145	171	88	89
MHAE057-TS024	95	80	84	164	154	184	93	94
MHAE057-TS025	100	85	89	174	160	192	98	100
Note�� 1. The O1 type steel tie rod can assemble use With [1]type only need to change the specification of screw thread. 2. The quantity of adjustment sleeve is according to the length of body of rod and adjustment distance.
