Common-Sling Connectings >> Steel Tie Rod >> Shipyard Steel Tie Rods >> Shipyard Steel Tie Rods-D2 Type
 |
 | |||
|---|---|---|---|---|
|
Product Name |
Shipyard Steel Tie Rods-D2 Type | |||
|
Product Material |
Steel | |||
|
Product No. |

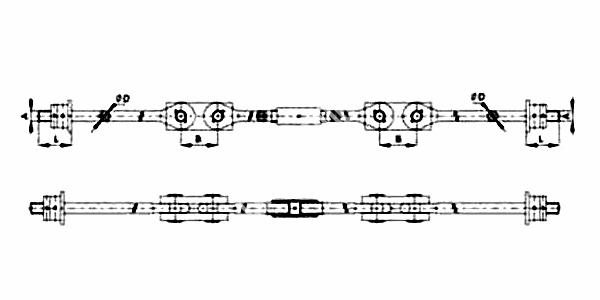

Diameter D | L | B | A |
|
MHAE057-TR001 |
20 | 65 | 66 | M24กม3 |
|
MHAE057-TR002 |
25 | 75 | 83 | M30กม3.5 |
|
MHAE057-TR003 |
28 | 80 | 92 | M33กม3.5 |
|
MHAE057-TR004 |
30 | 85 | 99 | M36กม4 |
|
MHAE057-TR005 |
32 | 90 | 106 | M39กม4 |
|
MHAE057-TR006 |
35 | 100 | 116 | M42กม4.5 |
|
MHAE057-TR007 |
38 | 105 | 125 | M45กม4.5 |
|
MHAE057-TR008 |
40 | 105 | 132 | M48กม5 |
|
MHAE057-TR009 |
45 | 105 | 149 | M56กม5.5 |
|
MHAE057-TR010 |
50 | 125 | 165 | M60กม5.5 |
|
MHAE057-TR011 |
55 | 140 | 182 | M68กม6 |
|
MHAE057-TR012 |
60 | 145 | 198 | M72กม6 |
|
MHAE057-TR013 |
65 | 165 | 215 | M76กม6 |
|
MHAE057-TR014 |
70 | 170 | 231 | M85กม6 |
|
MHAE057-TR015 |
75 | 190 | 248 | M90กม6 |
|
MHAE057-TR016 |
80 | 210 | 264 | M95กม5 |
|
MHAE057-TR017 |
85 | 230 | 281 | M100กม6 |
|
MHAE057-TR018 |
90 | 250 | 297 | M105กม6 |
|
MHAE057-TR019 |
95 | 270 | 314 | M110กม6 |
|
MHAE057-TR020 |
100 | 285 | 330 | M115กม6 |
|
MHAE057-TR021 |
105 | 290 | 347 | Tr125กม10 |
|
MHAE057-TR022 |
110 | 300 | 363 | Tr130กม10 |
|
MHAE057-TR023 |
115 | 310 | 379 | Tr135กม10 |
|
MHAE057-TR024 |
120 | 320 | 395 | Tr140กม10 |
|
MHAE057-TR025 |
125 | 325 | 412 | Tr150กม12 |
|
MHAE057-TR026 |
130 | 330 | 428 | Tr155กม12 |
|
MHAE057-TR027 |
135 | 335 | 444 | Tr160กม12 |
|
MHAE057-TR028 |
140 | 340 | 460 | Tr165กม12 |
|
MHAE057-TR029 |
145 | 345 | 477 | Tr170กม14 |
|
MHAE057-TR030 |
150 | 350 | 493 | Tr175กม14 |
|
MHAE057-TR031 |
155 | 355 | 509 | Tr180กม14 |
|
MHAE057-TR032 |
160 | 360 | 525 | Tr185กม14 |
|
MHAE057-TR033 |
165 | 365 | 542 | Tr195กม16 |
|
MHAE057-TR034 |
170 | 370 | 560 | Tr200กม16 |
|
MHAE057-TR035 |
175 | 375 | 579 | Tr205กม16 |
|
MHAE057-TR036 |
180 | 380 | 595 | Tr210กม16 |
|
MHAE057-TR037 |
185 | 385 | 620 | Tr220กม18 |
|
MHAE057-TR038 |
190 | 390 | 650 | Tr225กม18 |
|
MHAE057-TR039 |
195 | 395 | 671 | Tr230กม18 |
|
MHAE057-TR040 |
200 | 400 | 680 | Tr235กม18 |
|
MHAE057-TR041 |
205 | 405 | 697 | Tr240กม18 |
|
MHAE057-TR042 |
210 | 410 | 723 | Tr245กม18 |
| Noteฃบ 1. The O1 type steel tie rod can assemble use With [1]type only need to change the specification of screw thread. 2. The quantity of adjustment sleeve is according to the length of body of rod and adjustment distance. | ||||
