Shipyard Steel Tie Rods-OO Type,Shipyard Steel Tie Rods,Steel Tie Rod,Common-Sling Connectings -Product Details


Product Name	Shipyard Steel Tie Rods-OO Type
Product Material	Steel

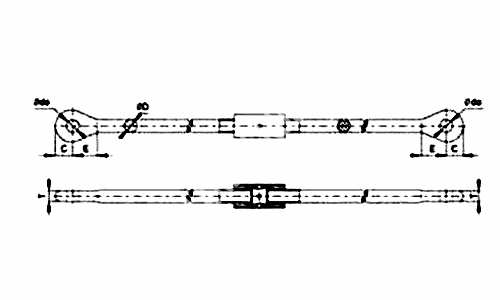

Product No.	Diameter D	T	C	E	do
MHAE057-SO001	20	16	28	39	19.5
MHAE057-SO002	25	20	35	47	24.5
MHAE057-SO003	28	24	38	53	27.5
MHAE057-SO004	30	26	41	55	29.5
MHAE057-SO005	32	28	44	63	31.5
MHAE057-SO006	35	30	48	68	34.5
MHAE057-SO007	38	33	52	73	37.5
MHAE057-SO008	40	35	55	76	39.5
MHAE057-SO009	45	40	61	83	44.5
MHAE057-SO010	50	42	68	97	50
MHAE057-SO011	55	45	75	105	55
MHAE057-SO012	60	50	81	113	60
MHAE057-SO013	65	55	88	120	65
MHAE057-SO014	70	60	95	133	70
MHAE057-SO015	75	65	101	141	75
MHAE057-SO016	80	70	108	148	80
MHAE057-SO017	85	70	115	161	85
MHAE057-SO018	90	75	121	170	89
MHAE057-SO019	95	80	128	178	94
MHAE057-SO020	100	85	135	186	100
MHAE057-SO021	105	90	143	193	105
MHAE057-SO022	110	95	149	200	110
MHAE057-SO023	115	95	156	209	115
MHAE057-SO024	120	100	162	225	120
MHAE057-SO025	125	105	170	232	125
MHAE057-SO026	130	110	176	246	130
MHAE057-SO027	135	115	182	253	135
MHAE057-SO028	140	120	189	260	140
MHAE057-SO029	145	130	196	269	145
MHAE057-SO030	150	130	202	278	149
MHAE057-SO031	155	130	209	294	154
MHAE057-SO032	160	130	216	303	159
MHAE057-SO033	165	135	222	311	164
MHAE057-SO034	170	140	229	320	169
MHAE057-SO035	175	140	237	331	174
MHAE057-SO036	180	140	246	341	179
MHAE057-SO037	185	140	256	357	184
MHAE057-SO038	190	140	266	368	189
MHAE057-SO039	195	145	275	376	194
MHAE057-SO040	200	150	280	385	299
MHAE057-SO041	205	155	285	392	204
MHAE057-SO042	210	160	290	400	209
Note�� 1. The O1 type steel tie rod can assemble use With [1]type only need to change the specification of screw thread. 2. The quantity of adjustment sleeve is according to the length of body of rod and adjustment distance.
