| Product Name | Shipyard Steel Tie Rods-IO Type | ||||||
| Product Material | Steel | ||||||
| Product No. |

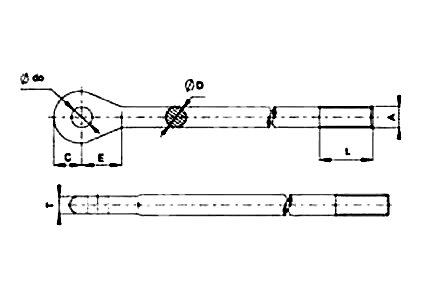

Diameter D |
T | C | E | do | L | A |
|
MHAE057-SI001 |
20 | 16 | 28 | 39 | 19.5 | 65 | M24กม3 |
|
MHAE057-SI002 |
25 | 20 | 35 | 47 | 24.5 | 75 | M30กม3.5 |
|
MHAE057-SI003 |
30 | 26 | 41 | 55 | 29.5 | 85 | M36กม4 |
|
MHAE057-SI004 |
35 | 30 | 48 | 68 | 34.5 | 100 | M42กม4.5 |
|
MHAE057-SI005 |
40 | 35 | 55 | 76 | 39.5 | 105 | M48กม5 |
|
MHAE057-SI006 |
45 | 40 | 61 | 83 | 44.5 | 105 | M56กม5.5 |
|
MHAE057-SI007 |
50 | 42 | 68 | 97 | 50 | 125 | M60กม5.5 |
|
MHAE057-SI008 |
55 | 45 | 75 | 105 | 55 | 140 | M68กม6 |
|
MHAE057-SI009 |
60 | 50 | 81 | 113 | 60 | 145 | M72กม6 |
|
MHAE057-SI010 |
65 | 55 | 88 | 120 | 65 | 165 | M76กม6 |
|
MHAE057-SI011 |
70 | 60 | 95 | 133 | 70 | 170 | M85กม6 |
|
MHAE057-SI012 |
75 | 65 | 101 | 141 | 75 | 190 | M90กม6 |
|
MHAE057-SI013 |
80 | 70 | 108 | 148 | 80 | 210 | M95กม6 |
|
MHAE057-SI014 |
85 | 70 | 115 | 161 | 85 | 230 | M100กม6 |
|
MHAE057-SI015 |
90 | 75 | 121 | 170 | 89 | 250 | M105กม6 |
|
MHAE057-SI016 |
95 | 80 | 128 | 178 | 94 | 270 | M110กม6 |
|
MHAE057-SI017 |
100 | 85 | 135 | 186 | 100 | 285 | M115กม6 |
|
MHAE057-SI018 |
105 | 90 | 143 | 193 | 105 | 290 | Tr125กม10 |
|
MHAE057-SI019 |
110 | 95 | 149 | 200 | 110 | 300 | Tr130กม10 |
|
MHAE057-SI020 |
115 | 100 | 156 | 209 | 115 | 310 | Tr135กม10 |
|
MHAE057-SI021 |
120 | 105 | 162 | 225 | 120 | 320 | Tr140กม10 |
|
MHAE057-SI022 |
125 | 110 | 170 | 232 | 125 | 325 | Tr150กม12 |
|
MHAE057-SI023 |
130 | 115 | 176 | 246 | 130 | 330 | Tr155กม12 |
|
MHAE057-SI024 |
135 | 120 | 182 | 253 | 135 | 335 | Tr160กม12 |
|
MHAE057-SI025 |
140 | 125 | 189 | 260 | 140 | 340 | Tr165กม12 |
|
MHAE057-SI026 |
145 | 130 | 196 | 269 | 145 | 345 | Tr170กม14 |
|
MHAE057-SI027 |
150 | 130 | 202 | 278 | 149 | 350 | Tr175กม14 |
|
MHAE057-SI028 |
155 | 130 | 209 | 294 | 154 | 355 | Tr180กม14 |
|
MHAE057-SI029 |
160 | 130 | 216 | 303 | 159 | 360 | Tr185กม14 |
|
MHAE057-SI030 |
165 | 135 | 222 | 311 | 164 | 365 | Tr195กม16 |
|
MHAE057-SI031 |
170 | 140 | 229 | 320 | 169 | 370 | Tr200กม16 |
|
MHAE057-SI032 |
175 | 140 | 237 | 331 | 174 | 375 | Tr205กม16 |
|
MHAE057-SI033 |
180 | 140 | 246 | 341 | 179 | 380 | Tr210กม16 |
|
MHAE057-SI034 |
185 | 140 | 256 | 357 | 184 | 385 | Tr220กม18 |
|
MHAE057-SI035 |
190 | 140 | 266 | 368 | 189 | 390 | Tr225กม18 |
|
MHAE057-SI036 |
195 | 145 | 275 | 376 | 194 | 395 | Tr230กม18 |
|
MHAE057-SI037 |
200 | 150 | 280 | 385 | 299 | 400 | Tr235กม18 |
|
MHAE057-SI038 |
205 | 155 | 285 | 392 | 204 | 405 | Tr240กม18 |
|
MHAE057-SI039 |
210 | 160 | 290 | 400 | 209 | 410 | Tr245กม18 |
| Noteฃบ 1. The O1 type steel tie rod can assemble use With [1]type only need to change the specification of screw thread. 2. The quantity of adjustment sleeve is according to the length of body of rod and adjustment distance. | |||||||
