Product Name |
Bridge Steel Tie Rods-II Type | ||
|
Product material |
Steel | ||
|
Product No. |

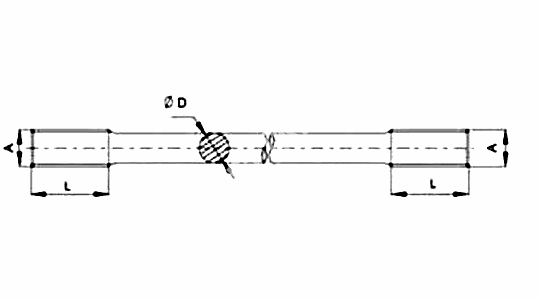

Diameter D | L | A |
|
MHAE057-II001 |
20 | 65 | M24กม3 |
|
MHAE057-II002 |
25 | 75 | M30กม3.5 |
|
MHAE057-II003 |
30 | 85 | M36กม4 |
|
MHAE057-II004 |
35 | 100 | M42กม4.5 |
|
MHAE057-II005 |
40 | 105 | M48กม5 |
|
MHAE057-II006 |
45 | 105 | M56กม5.5 |
|
MHAE057-II007 |
50 | 125 | M60กม5.5 |
|
MHAE057-II008 |
55 | 140 | M68กม6 |
|
MHAE057-II009 |
60 | 145 | M72กม6 |
|
MHAE057-II010 |
65 | 165 | M76กม6 |
|
MHAE057-II011 |
70 | 170 | M85กม6 |
|
MHAE057-II012 |
75 | 190 | M90กม6 |
|
MHAE057-II013 |
80 | 210 | M95กม6 |
|
MHAE057-II014 |
85 | 230 | M100กม6 |
|
MHAE057-II015 |
90 | 250 | M105กม6 |
|
MHAE057-II016 |
95 | 270 | M110กม6 |
|
MHAE057-II017 |
100 | 285 | M115กม6 |
|
MHAE057-II018 |
105 | 290 | Tr125กม10 |
|
MHAE057-II019 |
110 | 300 | Tr130กม10 |
|
MHAE057-II020 |
115 | 310 | Tr135กม10 |
|
MHAE057-II021 |
120 | 320 | Tr140กม10 |
|
MHAE057-II022 |
125 | 325 | Tr150กม12 |
|
MHAE057-II023 |
130 | 330 | Tr155กม12 |
|
MHAE057-II024 |
135 | 335 | Tr160กม12 |
|
MHAE057-II025 |
140 | 340 | Tr165กม12 |
|
MHAE057-II026 |
145 | 345 | Tr170กม14 |
|
MHAE057-II027 |
150 | 350 | Tr175กม14 |
|
MHAE057-II028 |
155 | 355 | Tr180กม14 |
|
MHAE057-II029 |
160 | 360 | Tr185กม14 |
|
MHAE057-II030 |
165 | 365 | Tr195กม16 |
|
MHAE057-II031 |
170 | 370 | Tr200กม16 |
|
MHAE057-II032 |
175 | 375 | Tr205กม16 |
|
MHAE057-II033 |
180 | 380 | Tr210กม16 |
|
MHAE057-II034 |
185 | 385 | Tr220กม18 |
|
MHAE057-II035 |
190 | 390 | Tr225กม18 |
|
MHAE057-II036 |
195 | 395 | Tr230กม18 |
|
MHAE057-II037 |
200 | 400 | Tr235กม18 |
|
MHAE057-II038 |
205 | 405 | Tr240กม18 |
|
MHAE057-II039 |
210 | 410 | Tr245กม18 |
| Noteฃบ 1. The O1 type steel tie rod can assemble use With [1]type only need to change the specification of screw thread. 2. The quantity of adjustment sleeve is according to the length of body of rod and adjustment distance. | |||
