Common-Sling Connectings >> Steel Tie Rod >> Bridge Steel Tie Rods >> Bridge Steel Tie Rods-IO1 Type
 |
 | |||||||
|---|---|---|---|---|---|---|---|---|
|
Product Name |

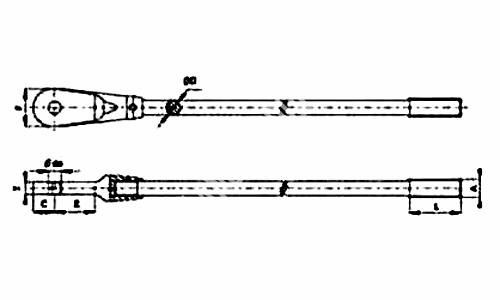

Bridge Steel Tie Rods-IO1 Type | |||||||
|
Product Material |
Steel | |||||||
|
Product No. |
Diameter D |
T | C | E | do | F | L | A |
|
MHAE057-IO001 |
20 | 16 | 34 | 65 | 19.5 | 60 | 65 | M24กม3 |
|
MHAE057-IO002 |
25 | 20 | 43 | 81 | 24.5 | 75 | 75 | M30กม3.5 |
|
MHAE057-IO003 |
30 | 24 | 50 | 96 | 29.5 | 90 | 85 | M26กม4 |
|
MHAE057-IO004 |
35 | 28 | 58 | 111 | 34.5 | 105 | 100 | M42กม4.5 |
|
MHAE057-IO005 |
40 | 34 | 66 | 127 | 39.5 | 119 | 105 | M48กม5 |
|
MHAE057-IO006 |
45 | 40 | 73 | 142 | 44.5 | 134 | 105 | M56กม5.5 |
|
MHAE057-IO007 |
50 | 45 | 82 | 158 | 50 | 150 | 125 | M60กม6 |
|
MHAE057-IO008 |
55 | 50 | 90 | 162 | 55 | 165 | 140 | M68กม6 |
|
MHAE057-IO009 |
60 | 50 | 98 | 176 | 60 | 180 | 145 | M72กม6 |
|
MHAE057-IO010 |
65 | 60 | 105 | 188 | 65 | 195 | 165 | M76กม6 |
|
MHAE057-IO011 |
70 | 60 | 113 | 201 | 70 | 209 | 170 | M85กม6 |
|
MHAE057-IO012 |
75 | 70 | 121 | 215 | 75 | 224 | 190 | M90กม6 |
|
MHAE057-IO013 |
80 | 70 | 128 | 227 | 80 | 239 | 210 | M95กม6 |
|
MHAE057-IO014 |
85 | 75 | 136 | 255 | 85 | 254 | 230 | M100กม6 |
|
MHAE057-IO015 |
90 | 75 | 145 | 269 | 89 | 268 | 250 | M105กม6 |
|
MHAE057-IO016 |
95 | 80 | 153 | 282 | 94 | 283 | 270 | M110กม6 |
|
MHAE057-IO017 |
100 | 85 | 161 | 297 | 100 | 301 | 285 | M115กม6 |
|
MHAE057-IO018 |
105 | 90 | 169 | 309 | 105 | 316 | 290 | Tr125กม10 |
|
MHAE057-IO019 |
110 | 95 | 177 | 323 | 110 | 330 | 300 | Tr130กม10 |
|
MHAE057-IO020 |
115 | 100 | 186 | 336 | 115 | 345 | 310 | Tr135กม10 |
|
MHAE057-IO021 |
120 | 100 | 195 | 351 | 120 | 360 | 320 | Tr140กม10 |
|
MHAE057-IO022 |
125 | 110 | 202 | 368 | 125 | 375 | 325 | Tr150กม12 |
|
MHAE057-IO023 |
130 | 110 | 211 | 382 | 130 | 389 | 330 | Tr155กม12 |
|
MHAE057-IO024 |
135 | 120 | 218 | 395 | 135 | 404 | 335 | Tr160กม12 |
|
MHAE057-IO025 |
140 | 120 | 225 | 412 | 140 | 419 | 340 | Tr165กม12 |
|
MHAE057-IO026 |
145 | 130 | 234 | 426 | 145 | 434 | 345 | Tr170กม14 |
|
MHAE057-IO027 |
150 | 130 | 243 | 440 | 149 | 448 | 350 | Tr175กม14 |
|
MHAE057-IO028 |
155 | 130 | 254 | 461 | 154 | 463 | 355 | Tr180กม14 |
|
MHAE057-IO029 |
160 | 130 | 263 | 475 | 159 | 478 | 360 | Tr185กม14 |
|
MHAE057-IO030 |
165 | 140 | 271 | 489 | 164 | 493 | 365 | Tr195กม16 |
|
MHAE057-IO031 |
170 | 140 | 280 | 502 | 169 | 507 | 370 | Tr200กม16 |
|
MHAE057-IO032 |
175 | 140 | 291 | 519 | 174 | 522 | 375 | Tr205กม16 |
|
MHAE057-IO033 |
180 | 140 | 301 | 534 | 179 | 537 | 380 | Tr210กม16 |
|
MHAE057-IO034 |
185 | 140 | 312 | 555 | 184 | 552 | 385 | Tr220กม18 |
|
MHAE057-IO035 |
190 | 140 | 323 | 571 | 189 | 566 | 390 | Tr225กม18 |
|
MHAE057-IO036 |
195 | 145 | 331 | 584 | 194 | 581 | 395 | Tr230กม18 |
|
MHAE057-IO037 |
200 | 150 | 340 | 599 | 199 | 596 | 400 | Tr235กม18 |
|
MHAE057-IO038 |
205 | 155 | 347 | 611 | 204 | 611 | 405 | Tr240กม18 |
|
MHAE057-IO039 |
210 | 160 | 355 | 624 | 209 | 625 | 410 | Tr245กม18 |
| Noteฃบ 1. The O1 type steel tie rod can assemble use With [1]type only need to change the specification of screw thread. 2. The quantity of adjustment sleeve is according to the length of body of rod and adjustment distance. | ||||||||
