Product Name |

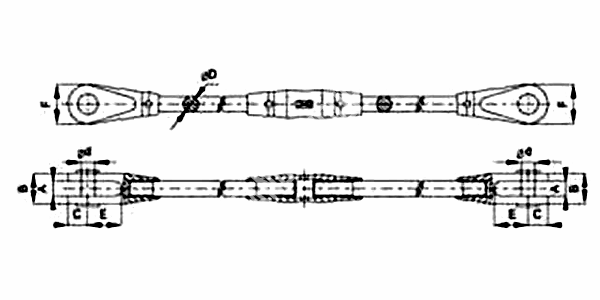

Bridge Steel Tie Rods-UU Type | ||||||
Product Material |
Steel | ||||||
Product No. |
Diameter D |
A | B | C | d | E | F |
MHAE057-UU001 |
20 | 20 | 36 | 34 | 19 | 65 | 60 |
MHAE057-UU002 |
25 | 24 | 44 | 43 | 24 | 81 | 75 |
MHAE057-UU003 |
30 | 28 | 52 | 50 | 29 | 96 | 90 |
MHAE057-UU004 |
35 | 32 | 60 | 58 | 34 | 111 | 105 |
MHAE057-UU005 |
40 | 38 | 72 | 66 | 39 | 127 | 119 |
MHAE057-UU006 |
45 | 44 | 84 | 73 | 44 | 142 | 134 |
MHAE057-UU007 |
50 | 46 | 86 | 85 | 49 | 158 | 150 |
MHAE057-UU008 |
55 | 56 | 106 | 90 | 54 | 162 | 165 |
MHAE057-UU009 |
60 | 56 | 106 | 98 | 59 | 176 | 180 |
MHAE057-UU010 |
65 | 66 | 126 | 105 | 64 | 188 | 195 |
MHAE057-UU011 |
70 | 66 | 126 | 113 | 69 | 201 | 209 |
MHAE057-UU012 |
75 | 76 | 146 | 121 | 74 | 215 | 224 |
MHAE057-UU013 |
80 | 76 | 146 | 128 | 79 | 227 | 239 |
MHAE057-UU014 |
85 | 82 | 162 | 136 | 84 | 255 | 254 |
MHAE057-UU015 |
90 | 82 | 162 | 145 | 88 | 269 | 268 |
MHAE057-UU016 |
95 | 86 | 166 | 153 | 93 | 282 | 283 |
MHAE057-UU017 |
100 | 92 | 182 | 161 | 98 | 297 | 301 |
MHAE057-UU018 |
105 | 98 | 188 | 169 | 103 | 309 | 316 |
MHAE057-UU019 |
110 | 104 | 204 | 177 | 108 | 323 | 330 |
MHAE057-UU020 |
115 | 108 | 208 | 186 | 113 | 336 | 345 |
MHAE057-UU021 |
120 | 108 | 208 | 195 | 118 | 351 | 360 |
MHAE057-UU022 |
125 | 118 | 228 | 202 | 123 | 368 | 375 |
MHAE057-UU023 |
130 | 118 | 228 | 211 | 128 | 382 | 389 |
MHAE057-UU024 |
135 | 128 | 248 | 218 | 133 | 395 | 404 |
MHAE057-UU025 |
140 | 128 | 248 | 225 | 138 | 412 | 419 |
MHAE057-UU026 |
145 | 138 | 268 | 234 | 143 | 426 | 434 |
MHAE057-UU027 |
150 | 138 | 268 | 243 | 147 | 440 | 448 |
MHAE057-UU028 |
155 | 140 | 270 | 254 | 152 | 461 | 463 |
MHAE057-UU029 |
160 | 140 | 270 | 263 | 157 | 475 | 478 |
MHAE057-UU030 |
165 | 150 | 290 | 271 | 162 | 489 | 493 |
MHAE057-UU031 |
170 | 150 | 290 | 280 | 167 | 502 | 507 |
MHAE057-UU032 |
175 | 150 | 290 | 291 | 172 | 519 | 522 |
MHAE057-UU033 |
180 | 150 | 290 | 301 | 177 | 534 | 537 |
MHAE057-UU034 |
185 | 150 | 290 | 312 | 182 | 555 | 552 |
MHAE057-UU035 |
190 | 150 | 290 | 323 | 187 | 571 | 566 |
MHAE057-UU036 |
195 | 156 | 306 | 331 | 192 | 584 | 581 |
MHAE057-UU037 |
200 | 160 | 310 | 340 | 197 | 599 | 596 |
MHAE057-UU038 |
205 | 166 | 326 | 347 | 202 | 611 | 611 |
MHAE057-UU039 |
210 | 170 | 330 | 355 | 207 | 624 | 625 |
| Note: 1.The UU type steel tie rod can assemble use With [1] type only need to change the specification of screw thread. 2. The quantity of adjustment sleeve is according to the length of body of rod and adjustment distance. |
|||||||
