Trolley >> Motorized Beam Trolley
 |
 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Product Name | Motorized Beam Trolley | ||||||||
| Product Material | Steel | ||||||||
| Product No. | Capacity Load (T) | Unit (mm) | Speed (m/min) |
Motor (Kw) |
Min Turn Radius | I-Beam (mm) | |||

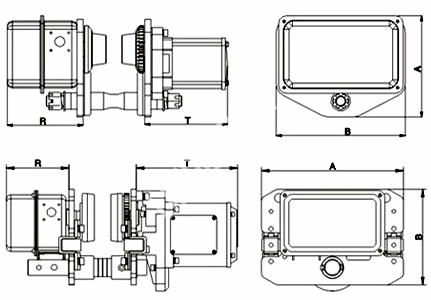

| A | B | R | T | ||||||
|
MHAE077-MT001 |
0.5 | 196 | 248 | 142 | 159 | 12.2 | 0.12 | 0.8 | 52-513 |
|
MHAE077-MT002 |
1 | 315 | 212 | 142 | 231 | 11/21 | 0.4 | 0.8 | 52-513 |
|
MHAE077-MT003 |
2 | 325 | 220 | 142 | 231 | 11/21 | 0.4 | 0.8 | 82-178 |
|
MHAE077-MT004 |
3 | 340 | 250 | 142 | 231 | 11/21 | 0.75 | 1.0 | 100-178 |
|
MHAE077-MT005 |
5 | 400 | 291 | 142 | 231 | 11/21 | 0.75 | 1.8 | 100-178 |
|
MHAE077-MT006 |
7.5 | 400 | 291 | 142 | 231 | 11/21 | 0.75 | 1.8 | 100-178 |
|
MHAE077-MT007 |
10 | 500 | 370 | 142 | 231 | 11/21 | 0.75 | 2.5 | 150-220 |
