Product Name G36 Connecting Link
Product Material G36 Steel

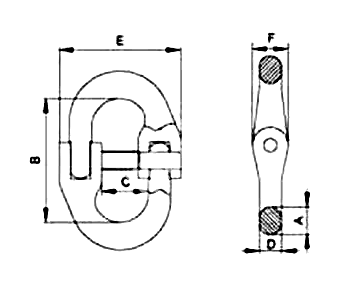

Product No. Chain Dia. A B C D E F WEIGHT
MHAE056-BL001 6 9 48 21 7 50 10 0.09
MHAE056-BL002 8 11 58 21 9 54 13 0.17
MHAE056-BL003 10 14 74 27 12 68 17 0.41
MHAE056-BL004 12 17.5 94 37 13.5 88 20 0.67
MHAE056-BL005 14 20 106 41 16 98 24 1.13
MHAE056-BL006 16 23 114 45 18 110 27 1.61
MHAE056-BL007 18 25 124 48 20 120 31 2.06
MHAE056-BL008 20 28 131 50 23 130 34 2.73
MHAE056-BL009 22 30 138 53 25 140 38 3.63
MHAE056-BL010 24 33 150 59 27 152 42 4.73
MHAE056-BL011 26 37 166 63 30 164 45 5.93
MHAE056-BL012 30 40 180 65 33 170 50 7.14
MHAE056-BL013 34 42 198 73 34 200 62 10.4
Note:
  1. Adopted high-quality alloy steel nd throughout swaged forging process.
  2. Working load limit: 1t ¨C 29t
  3. Proof loaded at 2 times the Working Load Limit. Minimum Ultimate Load is 4 times the Working Load Limit.
  4. Heated Treated
  5. There are signs such as Working Load Limit in the link.
