| Product Name | G80 Connecting Link | |||||||||
| Product Name | G80 Steel | |||||||||

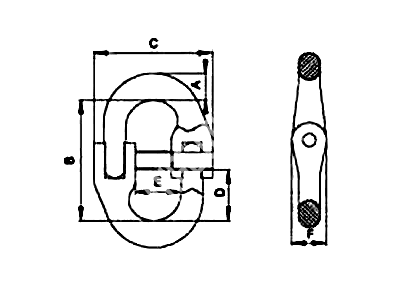

| Product No. | Chain Dia. | Load Limit | Dimensions | Weight | ||||||
| inch | mm | A | B | C | D | E | F | |||
| MHAE056-GB001 | 9/32(1/4) | 7 | 1.5 | 8.4 | 47.8 | 47 | 19.8 | 16 | 14.2 | 0.13 |
| MHAE056-GB002 | 5/16 | 8 | 2 | 9.15 | 55.4 | 50 | 23.1 | 16.8 | 16 | 0.15 |
| MHAE056-GB003 | 3/8 | 10 | 3.15 | 11.4 | 64.3 | 63.5 | 26.2 | 21.6 | 19.1 | 0.34 |
| MHAE056-GB004 | 1/2 | 13 | 5.3 | 16.3 | 87.4 | 81.8 | 36.6 | 27.7 | 23.9 | 0.75 |
| MHAE056-GB005 | 5/8 | 16 | 8 | 19.1 | 105 | 96 | 43.9 | 35.1 | 28.7 | 1.3 |
| MHAE056-GB006 | 3/4 | 20 | 11.2 | 23.6 | 126 | 118 | 53.1 | 40.4 | 32.5 | 2.26 |
| MHAE056-GB007 | 7/8 | 22 | 15 | 26.9 | 140 | 143 | 58.7 | 50 | 36.6 | 3.41 |
| MHAE056-GB008 | 1 | 25 | 21.2 | 31 | 152 | 157 | 63.5 | 56.4 | 47.8 | 5 |
| MHAE056-GB009 | 1-1/4 | 32 | 31.5 | 38.1 | 189 | 194 | 78.5 | 64.3 | 55.6 | 9.25 |
| Note: 1. Adopted high-quality alloy steel and throughout swaged forging process. 2. Working load limit: 1.5t ¨C 31.5t 3. Proof loaded at 2 times the Working Load Limit. Minimum Ultimate Load is 4 times the Working Load Limit. 4. Heat Treated 5. There are signs such as Working Load Limit in the link. 6. Used With Chain, connect simply, firm. | ||||||||||
