Product Name |
G63 Link assembly | ||||||||
|
Product Material |
G63 Steel | ||||||||
|
Product No. |
Working Load Limit | Master Link WLL | Middle Link WLL | Master Link Size | Middle Link Size | Weight | |||

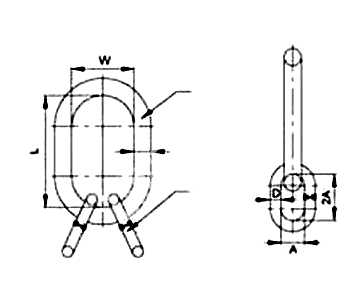

| d | W | L | D | A | |||||
|
MHAE055-GA001 |
0.5 | 0.5 | 0.36 | 12 | 50 | 100 | 8 | 20 | 0.36 |
|
MHAE055-GA002 |
1 | 1 | 0.75 | 14 | 65 | 130 | 10 | 25 | 0.66 |
|
MHAE055-GA003 |
2 | 2 | 1.4 | 16 | 65 | 130 | 12 | 25 | 0.91 |
|
MHAE055-GA004 |
3 | 3 | 2.2 | 20 | 80 | 150 | 14 | 30 | 1.6 |
|
MHAE055-GA005 |
5 | 5 | 3.5 | 24 | 90 | 160 | 18 | 40 | 2.77 |
|
MHAE055-GA006 |
8 | 8 | 6.4 | 28 | 100 | 190 | 22 | 40 | 4.45 |
|
MHAE055-GA007 |
10 | 10 | 7.0 | 32 | 110 | 200 | 26 | 50 | 6.75 |
|
MHAE055-GA008 |
12 | 12 | 8.4 | 34 | 120 | 230 | 28 | 50 | 8.31 |
|
MHAE055-GA009 |
16 | 16 | 11.2 | 38 | 135 | 250 | 30 | 60 | 11.38 |
|
MHAE055-GA010 |
20 | 20 | 14.0 | 42 | 140 | 270 | 35 | 70 | 16.04 |
|
MHAE055-GA011 |
25 | 25 | 17.5 | 46 | 160 | 310 | 38 | 70 | 20.85 |
|
MHAE055-GA012 |
30 | 30 | 21.0 | 52 | 180 | 330 | 42 | 80 | 28.94 |
|
MHAE055-GA013 |
40 | 40 | 28.0 | 56 | 180 | 330 | 45 | 80 | 33.92 |
|
MHAE055-GA014 |
50 | 50 | 35.0 | 62 | 210 | 410 | 50 | 100 | 50.41 |
|
MHAE055-GA015 |
63 | 63 | 44.0 | 68 | 210 | 410 | 55 | 100 | 61.87 |
|
MHAE055-GA016 |
80 | 80 | 56.0 | 76 | 240 | 410 | 65 | 130 | 92.82 |
|
MHAE055-GA017 |
100 | 100 | 70.0 | 84 | 240 | 460 | 70 | 130 | 117.1 |
|
MHAE055-GA018 |
120 | 120 | 85.0 | 90 | 254 | 508 | 75 | 140 | 145.5 |
| Note: 1. Accord With standards QIJL022-2007 2. Adopted high-quality alloy steel and throughout swaged forging process and Welding. 3. Heated Treated 4. Non-destructive test was performed. | |||||||||
